Adjust wiper arms - AR82.30-P-6100-01CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 190, 197, 204, 207, 212, 218
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS
| Number |
Designation |
MODEL 190 |
MODEL 197 |
| BE82.30-P-1003-01M |
Angle of incidence of driver-side wiper arm in parked position |
Left-hand drive vehicle |
∠° |
+2, 0...+6, 0 |
+2, 0...+6, 0 |
| Right-hand drive vehicle |
∠° |
-2, 0...-6, 0 |
-2, 0...-6, 0 |
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS
| Number |
Designation |
MODEL 204 |
MODEL 207 |
| BE82.30-P-1003-01M |
Angle of incidence of driver-side wiper arm in parked position |
Left-hand drive vehicle |
∠° |
+3, 0...+7, 0 |
+3, 0...+7, 0 |
| Right-hand drive vehicle |
∠° |
-3, 0...-7, 0 |
-3, 0...-7, 0 |
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS
| Number |
Designation |
MODEL 212 |
MODEL 218 |
| BE82.30-P-1003-01M |
Angle of incidence of driver-side wiper arm in parked position |
Left-hand drive vehicle |
∠° |
+3, 0...+7, 0 |
+3, 0...+7, 0 |
| Right-hand drive vehicle |
∠° |
-3, 0...-7, 0 |
-3, 0...-7, 0 |
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS
| Number |
Designation |
MODEL 190 |
MODEL 197 |
| BE82.30-P-1004-01M |
Angle of incidence of passenger-side wiper arm in parked position |
Left-hand drive vehicle |
∠° |
+3, 0...+7, 0 |
+3, 0...+7, 0 |
| Right-hand drive vehicle |
∠° |
-3, 0...-7, 0 |
-3, 0...-7, 0 |
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS
| Number |
Designation |
MODEL 204 |
MODEL 207 |
| BE82.30-P-1004-01M |
Angle of incidence of passenger-side wiper arm in parked position |
Left-hand drive vehicle |
∠° |
+3, 0...+7, 0 |
+3, 0...+7, 0 |
| Right-hand drive vehicle |
∠° |
-3, 0...-7, 0 |
-3, 0...-7, 0 |
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS
| Number |
Designation |
MODEL 212 |
MODEL 218 |
| BE82.30-P-1004-01M |
Angle of incidence of passenger-side wiper arm in parked position |
Left-hand drive vehicle |
∠° |
+3, 0...+7, 0 |
+3, 0...+7, 0 |
| Right-hand drive vehicle |
∠° |
-3, 0...-7, 0 |
-3, 0...-7, 0 |
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
The setting of the angle of incidence on the driver-side wiper arm and passenger-side wiper arm is always done in the park position and only when the check values differentiate from the tolerance range in the reverse or park position. In doing so, the driver-side wiper arm or front passenger-side wiper arm is distorted by at least the value of the tolerance deviation in reversing position.

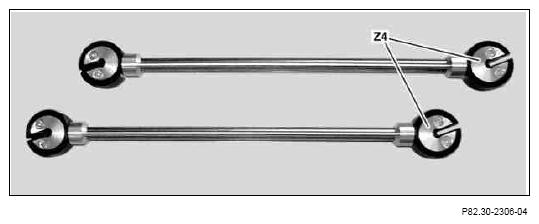

Use adjustment levers (Z4) from
adjustment tool set.
Courtesy of MERCEDES-BENZ USA
On wiper arms without
Toplock system, use the
adapter from the
adjustment tool set.
On wiper arms with
Toplock system (not on MODEL 190, 197), use the separate
adapter.
The following description is shown on wiper arms without Toplock system.

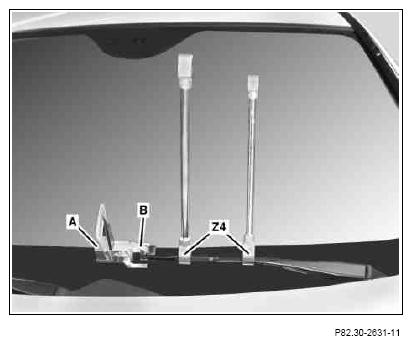

Shown on driver-side wiper arm in park position
-
Mount angle gauge (A) with
adapter (B) onto the wiper arm to be adjusted.
- Lower wiper arm until all three contact points of the base of the
angle gauge (A) touch the windshield.
-
Place adjustment levers (Z4) as far apart from each other as possible on this wiper arm.
The wiper arm is twisted with the aid of the
adjustment lever (Z4) that was positioned close to the
angle gauge (A). The second
adjustment lever (Z4) is used as a counterholder.
-
Press adjustment lever (Z4) in the required direction until the wiper arm is at least distorted by the value of the tolerance deviation in reversing position.
Courtesy of MERCEDES-BENZ USA
-
Remove adjustment lever (Z4) from wiper arm.
- Read off angle of incidence for adjusted wiper arm on scale of
angle gauge (A), note it down and compare against the test and adjustment values, adjust again if necessary.
-
Remove angle gauge (A) with
adjusted wiper arm. adapter (B) from
