Install rear longitudinal member section - AR64.20-P-1260-03EW
MODEL 212.0/1/2, 218.3
The following operation steps are shown on the left side of the vehicle on model 212.0 and must be performed analogously on the right side in the event of damage.

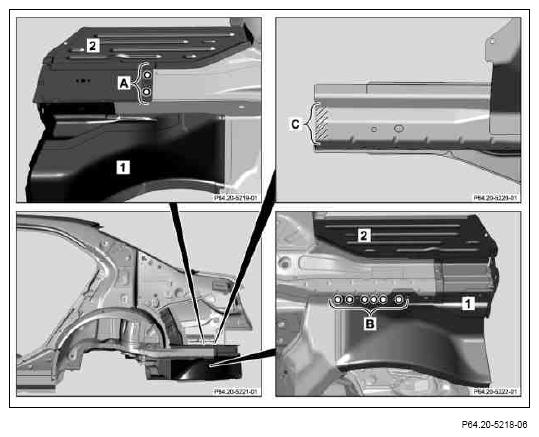

- Partially install rear longitudinal member (1) and rear locking lug (2), fit with straightening tool and fix in place.
Observe setup plans. Use spacers of straightening tool (see set-up plan).
- Drill rivet holes on rear longitudinal member section (1) and rear locking lug (2) with Ø 6.7 mm (areas A and B)
Model 212.041 Processing is not necessary in area B depending on the version.
- Remove rear longitudinal member section (1) and rear end part (2).
- Deburr rivet holes on rear longitudinal member section (1) and rear end part (2) on both sides.
Model 212.041
Deburr rear locking lug (2) on both sides.
- Remove drilling chips.
- Coat insides of riveted joints with zinc dust paint.
- Apply 2-component adhesive in crosshatched area (area C).
Observe pretreatment of bonding surfaces. Refer to the manufacturer's information for the curing and working times of 2-component adhesive.
- Install rear longitudinal member section (1), fit and fasten using straightening tool.
Use spacers of straightening tool (see set-up plan).
- Partially rivet rear longitudinal member (1) with Ø 6.5x12.5 blind rivets (area B).
Model 212.041
Processing is not necessary in area B depending on the version.

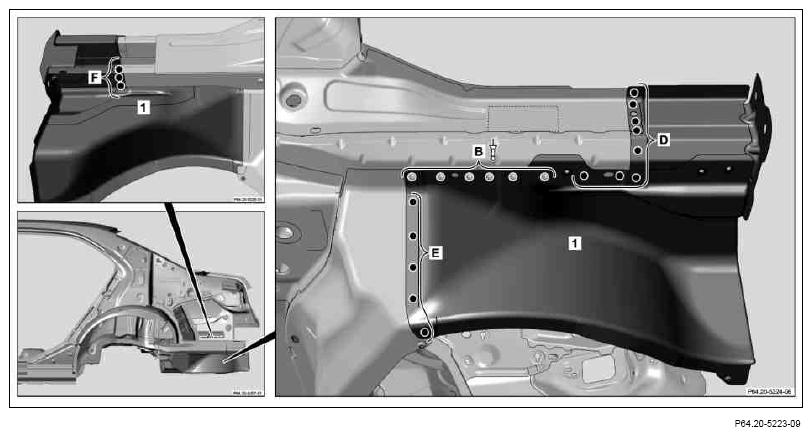

- Rear longitudinal member section (1)
(areas D, E and F).
Model 212.041
No work is required in area E and work is required only on parts of area D due to the version.

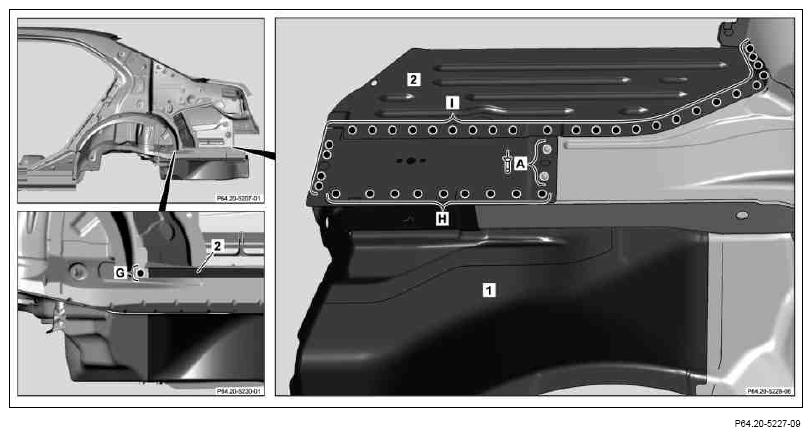

- Install rear locking lug (2), fit and fix in place.
- Rear locking lug (2)
(areas G and I).
- Rivet rear locking lug (2) with Ø 6.5x12.5 rivet (area A).
