Install and weld in rear end - AR64.20-P-1020-03EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0/1, 218.3

Install rear end assembly (1), rear lamp units and rubber seal and fit.
Check and adjust gaps.
Fix in place rear end assembly (1) with vise grip pliers.
Remove rear lamp unit and rubber seal.
Drill Ø 6.7 mm rivet holes on rear end (1) (areas I, J, X₂ and Y₂ ).
Drill Ø 5.5 mm holes for plug welding (areas X₁ and Y₁ ).

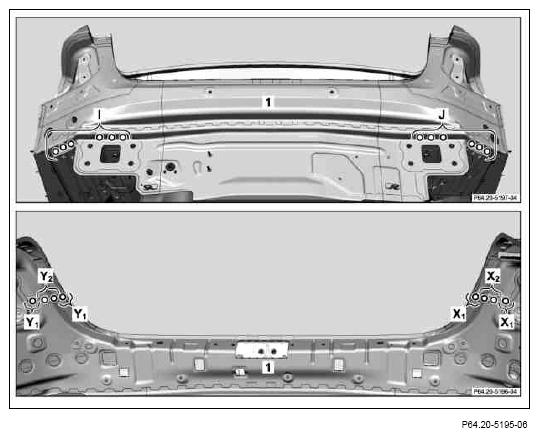

Fig 1: Rear End Assembly Rivet Hole Areas
Courtesy of MERCEDES-BENZ USA
Remove rear end (1)
Deburr rivet holes on rear end (1) on both sides.
Apply zinc dust paint to insides of riveted joints.
Install rear end (1), fit and fix in place.
Rivet rear end (1) with Ø 6.4 X 14 Polygrip flat/round head rivet (areas K, L, X₂ and Y₂ ).
Rear end (1) (areas X₁ and Y₁ ).

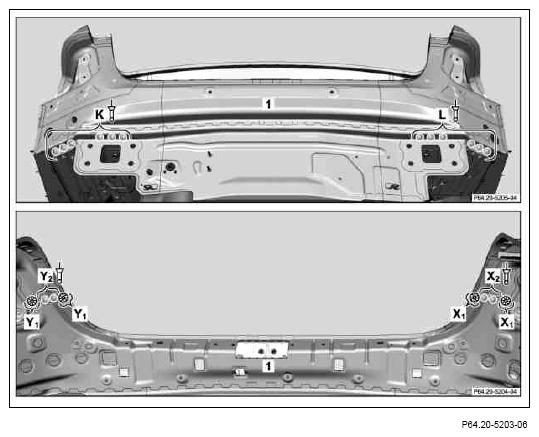

Fig 2: Rear End Rivet Areas
Courtesy of MERCEDES-BENZ USA
Position sheet metal lugs in connection area of rear fender on rear end (1) (arrows).
Rear end (1) (areas M, N, O, P, Q and R).
On model 212.041 areas O and P are not present due to the structural shape
Clean weld joints.
Remove shavings and drill chips.

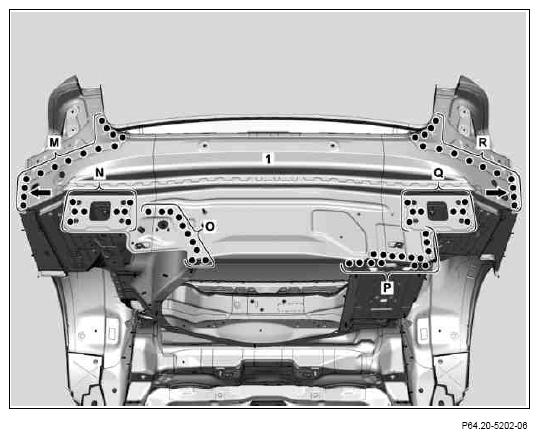

Fig 3: Locating Rear Fender Sheet Metal Lugs
Courtesy of MERCEDES-BENZ USA
