Detach rear end - AR64.20-P-1020-01ES

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.2 Type without reinforcements

MODEL 218.9 Type without reinforcements

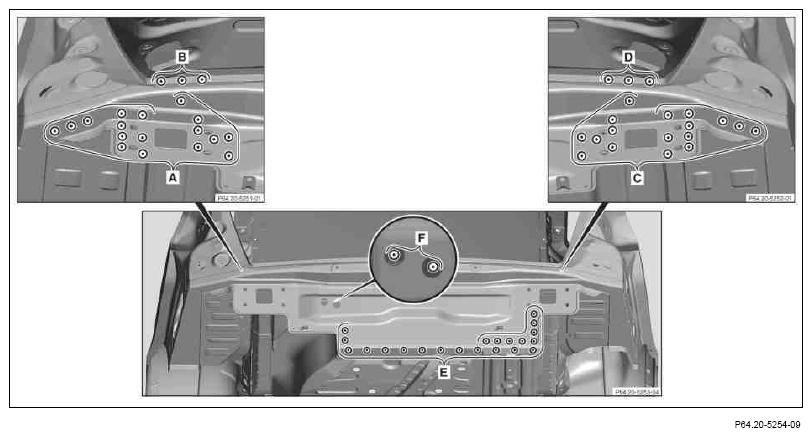

Fig 1: Rear End Assembly Spot Weld Areas (A, B, C, D, E And F)

Courtesy of MERCEDES-BENZ USA

Expose spot welds on rear end assembly and cut out (areas A, B, C, D, E and F).

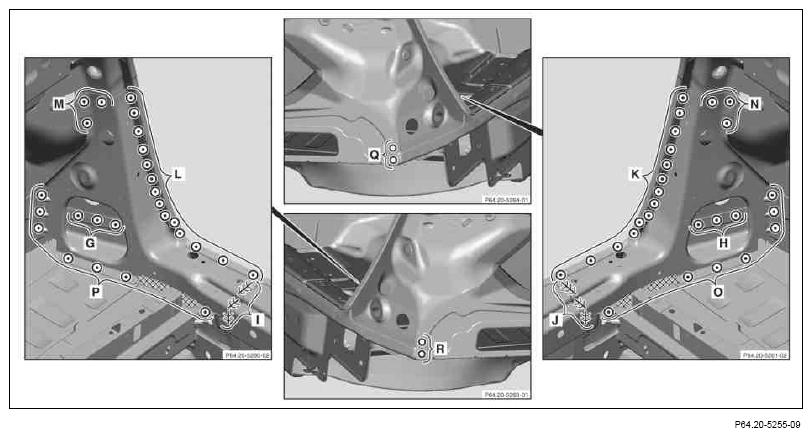

Fig 2: Rear End Assembly Spot Welds Area (G, H, K, L, M, N, O And P)

Courtesy of MERCEDES-BENZ USA

Expose spot welds on rear end assembly and cut out (areas G and H).
Drill Ø 6.5 mm spot welds on rear end assembly (areas Q and R).
Grind open MIG solder connection on rear end assembly (area I and J).
Heat rear end assembly in crosshatched area.
Cross-hatched area is bonded.
Remove damaged rear end assembly.

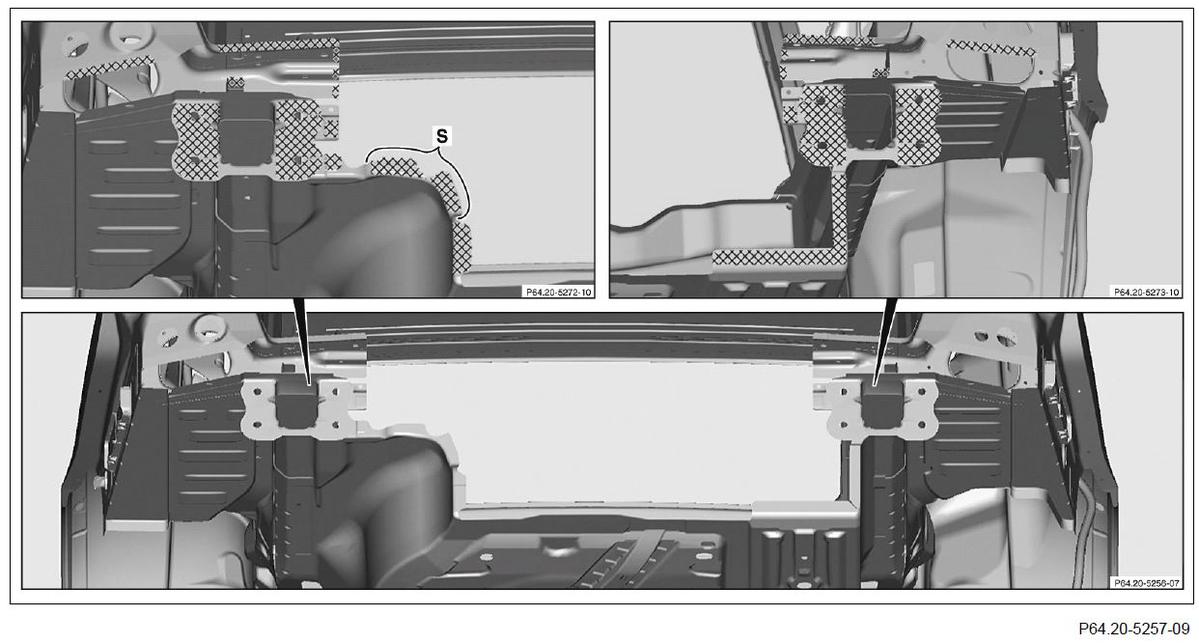

Fig 3: Heating Rear End Assembly In Crosshatched Area
Courtesy of MERCEDES-BENZ USA

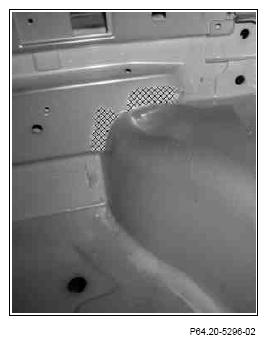

Fig 4: Rear End Assembly Mating Surfaces

Courtesy of MERCEDES-BENZ USA

Grind mating surfaces on body down to bare metal in cross-hatched areas.
Sand spot weld flanges to bare metal on both sides.

Observe pretreatment of bonding surfaces (area S).
Remove shavings and drill chips.
Coat insides of spot weld flanges with zinc dust paint.
Do not coat bonding surfaces with zinc dust paint. This can lead to adhesion problems.
