Sheet metal crimping pliers for areas not easily accessible - WF58.50-P-6350-01SC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166, 204, 207, 212, 216, 218

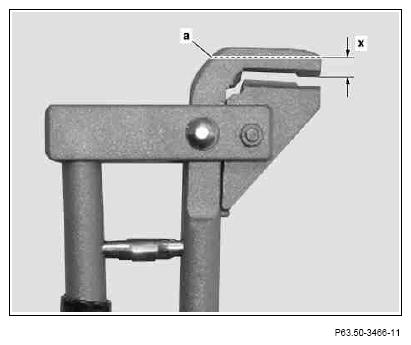

- Mark separation line (a) in accordance with dimension (x) on the sheet metal crimping pliers.
Dimension (x) is 6 mm.
- Grind off upper part of sheet metal crimping pliers up to separation line (a).
