Retrofit pedal pads - AN29.10-P-0002EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## (except 212.074/075/076/077/092/094/095) 1#, 212.2## (except 212.274/275/276/277/292/298) 1# without CODE 950 (AMG sport package)

Shown on vehicle with transmission 722

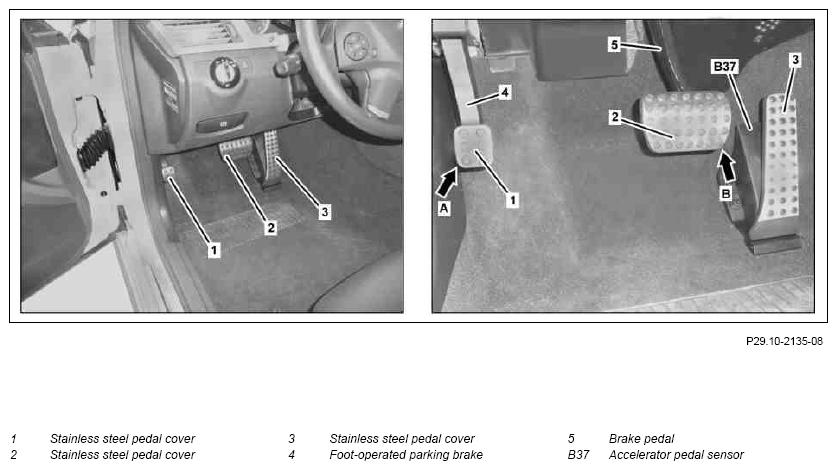

Fig 1: Pedal Pads Components - Shown On Vehicle With Transmission 722

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove accelerator pedal sensor (B37)
			AR30.12-P-1321EW
		The accelerator pedal sensor (B37) with its pedal cover is no longer required.	AR30.12-P-1321EW
2	Remove rubber support of foot-operated parking brake (4)	The rubber pedal support of the foot-operated parking brake (4) is no longer required.
3	Remove pedal rubber support of the clutch pedal	Only on vehicles with transmission 711 and 716 The pedal rubber support of the clutch pedal is no longer required.
4	Remove pedal rubber support of brake pedal (5)	The pedal rubber support of the brake pedal (5) is no longer required.
	Install
5	Install accelerator pedal sensor (B37) with stainless steel support (3)
			AR30.12-P-1321EW
6	Attach stainless steel pedal support (1) to the foot-operated parking brake (4) in the lower area (arrow A) and invert clockwise over the foot-operated parking brake (4)	Do not use lubricants when installing. Otherwise the firm seating of the stainless steel pedal assembly (1) will not be assured.
7	Attach stainless steel pedal support to clutch pedal in the lower area and invert clockwise over the clutch pedal	Only on vehicles with transmission 711 and 716 Do not use lubricants when installing. Otherwise the firm seating of the stainless steel pedal assembly will not be assured.
8	Attach stainless steel pedal support (2) to the brake pedal (5) in the lower area (arrow B) and invert clockwise over the brake pedal (5)	Do not use lubricants when installing. Otherwise the firm seating of the stainless steel pedal assembly (2) will not be assured.
9	Enter retrofitted equipment in Vehicle Documentation (VeDoc)	Attach note "Pedal covers retrofitted as per AN29.10-P-0002EW" under field organization texts .

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG99	Interior compartment equipment	1
