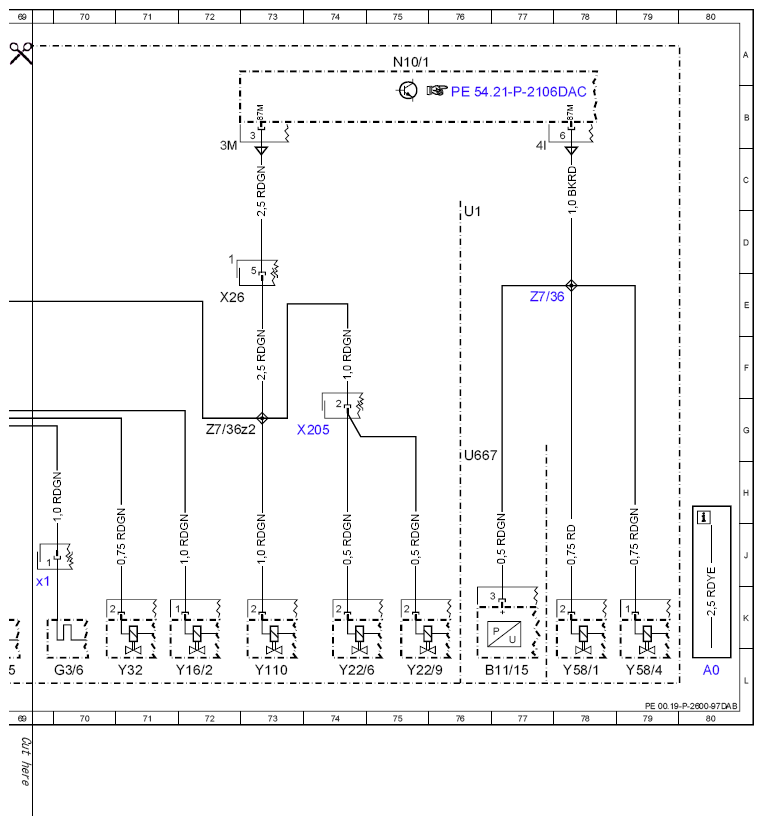

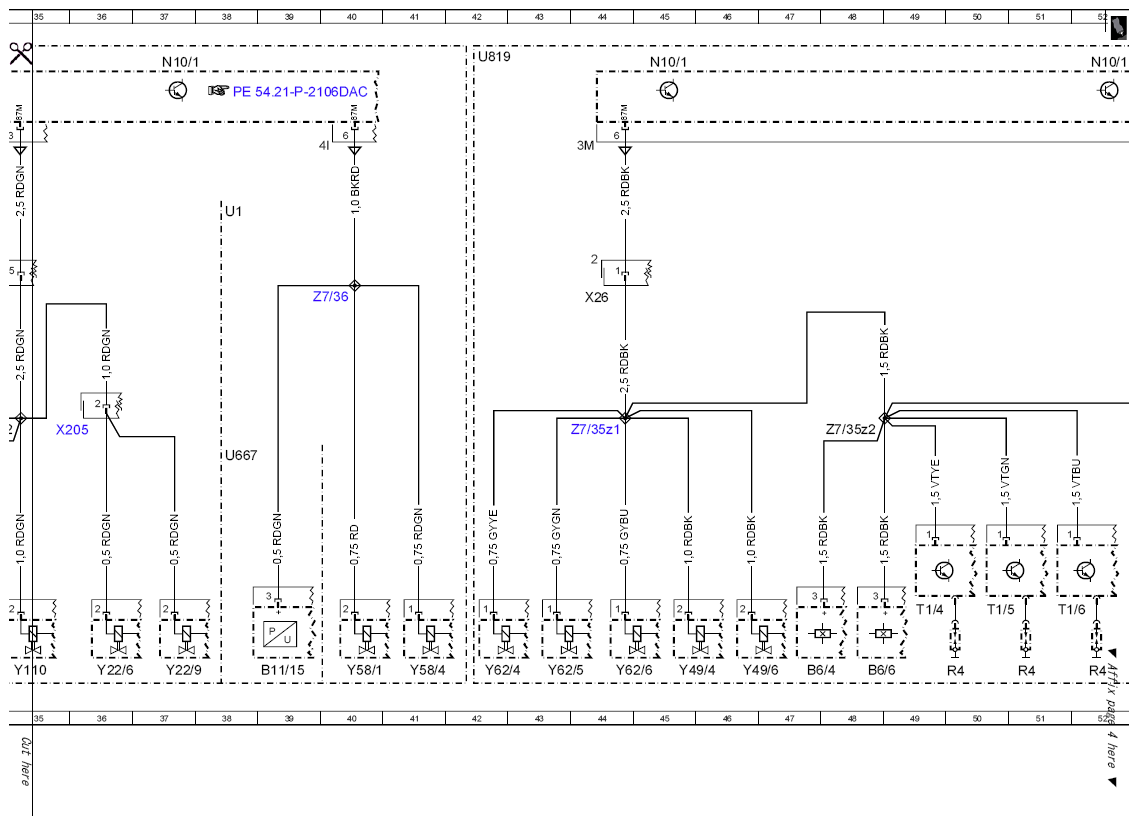

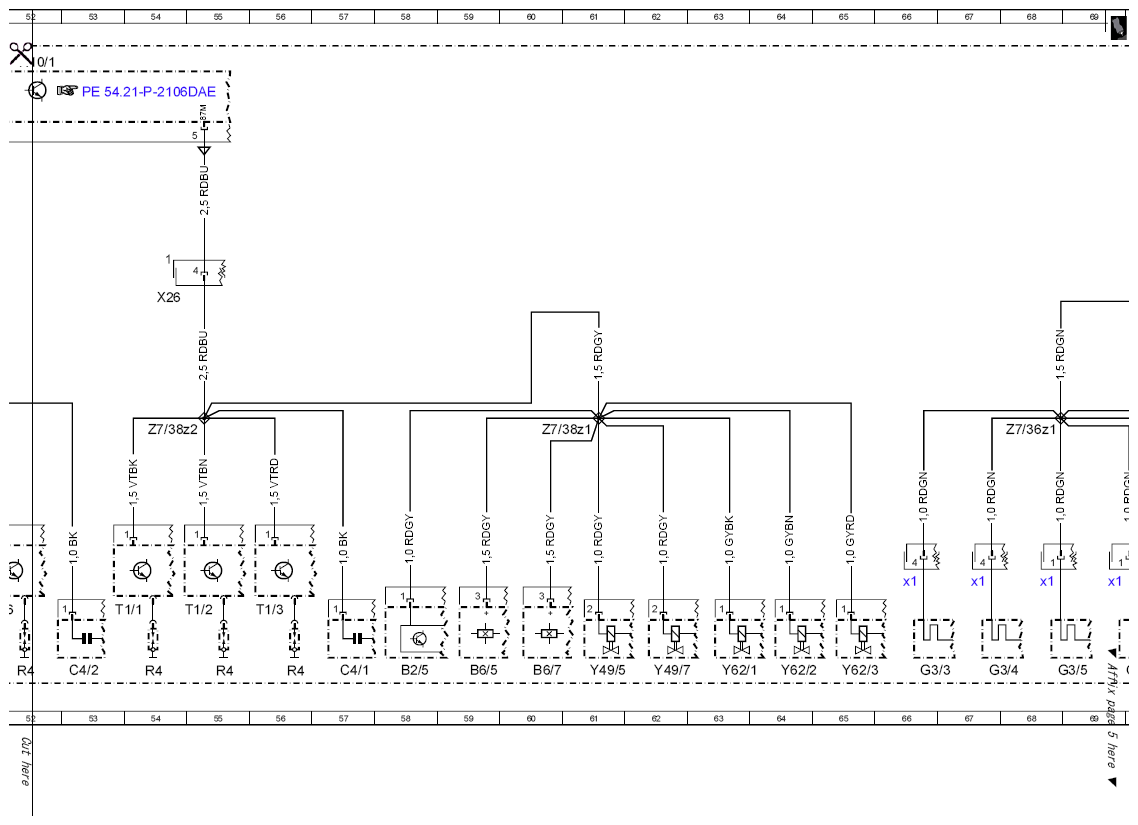

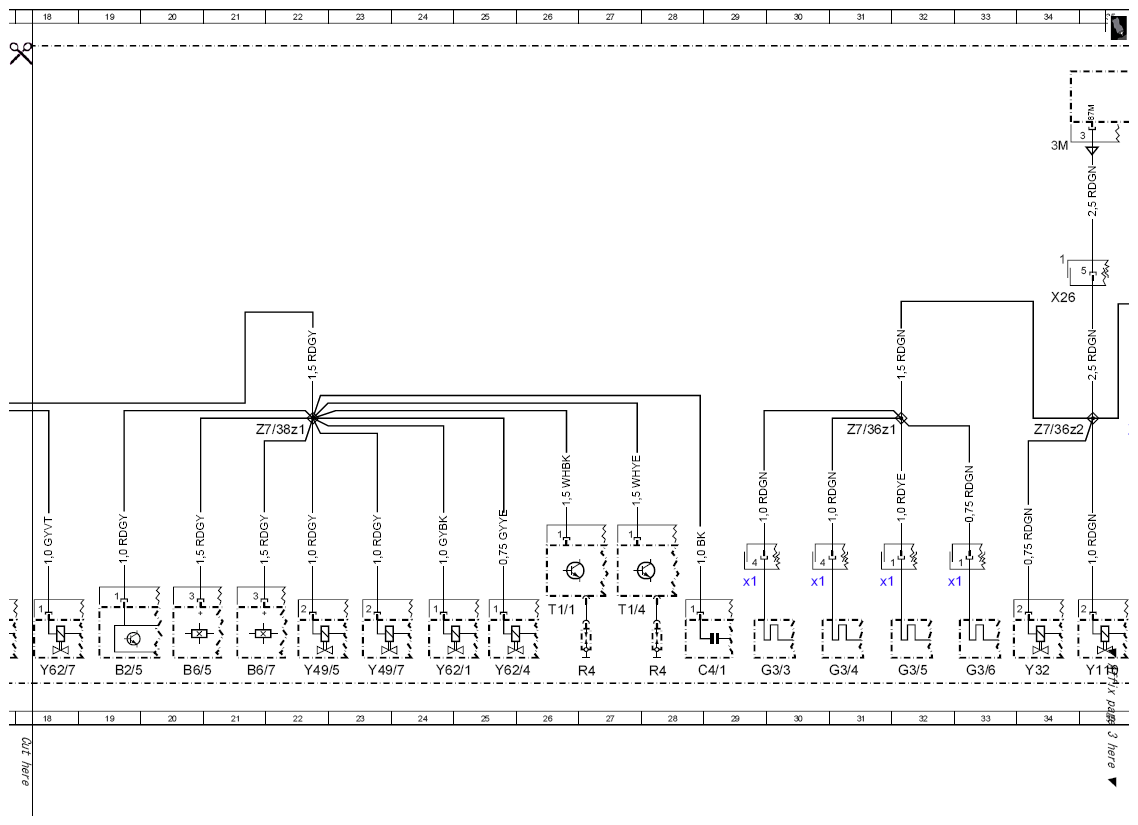

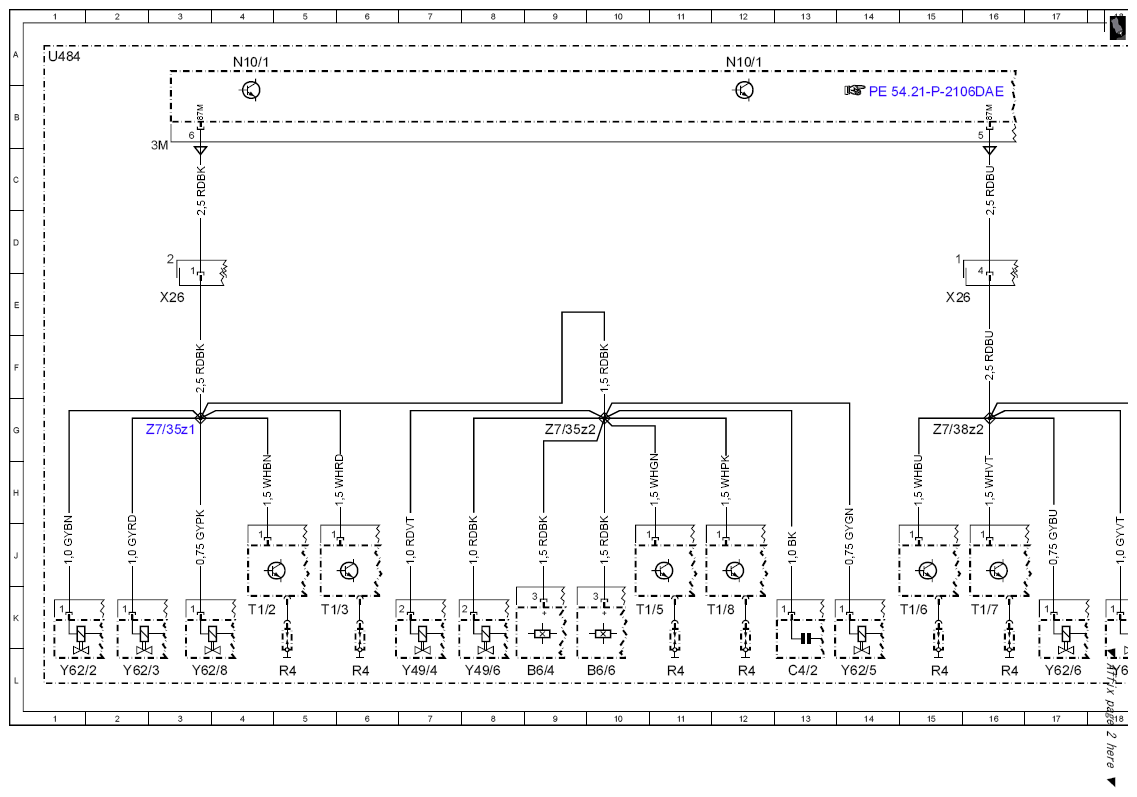

Wiring diagram of soldered points / Z connector sleeves - PE00.19-P-2600-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 Z7/35z1 (M 272 ME), Z7/35z2 (M 272 ME), Z7/36 (M 272 ME), Z7/36z1 (M 272ME), Z7/36z2 (M 272ME), Z7/38z1 (M 272 ME), Z7/38z2 (M 272 ME), Z7/35z1 (M 273), Z7/35z2 (M 273), Z7/36 (M 273), Z7/36z1 (M 273), Z7/36z2 (M 273), Z7/38z1 (M 273), Z7/38z2 (M 273)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| B11/15 | PremAir sensor | 39L |
| B11/15 | PremAir sensor | 77L |
| B2/5 | Hot film mass air flow sensor | 19L |
| B2/5 | Hot film mass air flow sensor | 58L |
| B6/4 | Left intake camshaft Hall sensor | 9L |
| B6/4 | Left intake camshaft Hall sensor | 47L |
| B6/5 | Right intake camshaft Hall sensor | 20L |
| B6/5 | Right intake camshaft Hall sensor | 59L |
| B6/6 | Left exhaust camshaft Hall sensor | 10L |
| B6/6 | Left exhaust camshaft Hall sensor | 48L |
| B6/7 | Right exhaust camshaft Hall sensor | 21L |
| B6/7 | Right exhaust camshaft Hall sensor | 60L |
| C4/1 | Radio interference suppression capacitor 1 | 29L |
| C4/1 | Radio interference suppression capacitor 1 | 57L |
| C4/2 | Radio interference suppression capacitor 2 | 13L |
| C4/2 | Radio interference suppression capacitor 2 | 53L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 30L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 66L |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of catalytic converter | 29J |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of catalytic converter | 66J |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 31L |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 67L |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 30J |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 67J |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 32L |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 69L |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 31J |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 68J |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 33L |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 70L |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 32J |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 69J |
| N10/1 | Front SAM control unit with fuse and relay module | 4A |
| N10/1 | Front SAM control unit with fuse and relay module | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 37A |
| N10/1 | Front SAM control unit with fuse and relay module | 45A |
| N10/1 | Front SAM control unit with fuse and relay module | 52A |
| N10/1 | Front SAM control unit with fuse and relay module | 75A |
| R4 | Spark plugs | 5L |
| R4 | Spark plugs | 28L |
| R4 | Spark plugs | 27L |
| R4 | Spark plugs | 6L |
| R4 | Spark plugs | 15L |
| R4 | Spark plugs | 16L |
| R4 | Spark plugs | 12L |
| R4 | Spark plugs | 11L |
| R4 | Spark plugs | 52L |
| R4 | Spark plugs | 56L |
| R4 | Spark plugs | 55L |
| R4 | Spark plugs | 54L |
| R4 | Spark plugs | 50L |
| R4 | Spark plugs | 51L |
| T1/1 | Cylinder 1 ignition coil | 26K |
| T1/1 | Cylinder 1 ignition coil | 53K |
| T1/2 | Cylinder 2 ignition coil | 4K |
| T1/2 | Cylinder 2 ignition coil | 55K |
| T1/3 | Cylinder 3 ignition coil | 5K |
| T1/3 | Cylinder 3 ignition coil | 56K |
| T1/4 | Cylinder 4 ignition coil | 27K |
| T1/4 | Cylinder 4 ignition coil | 49K |
| T1/5 | Cylinder 5 ignition coil | 10K |
| T1/5 | Cylinder 5 ignition coil | 50K |
| T1/6 | Cylinder 6 ignition coil | 15K |
| T1/6 | Cylinder 6 ignition coil | 51K |
| T1/7 | Cylinder 7 ignition coil | 16K |
| T1/8 | Cylinder 8 ignition coil | 12K |
| U1 | Valid for USA | 38D |
| U1 | Valid for USA | 76D |
| U484 | Valid for gasoline engine 273 | 1A |
| U667 | Valid for California | 38G |
| U667 | Valid for California | 76G |
| U819 | Valid for gasoline engine 272 | 42A |
| X205 | Tumble flap and intake manifold switchover valves electrical connector | 36G |
| X205 | Tumble flap and intake manifold switchover valves electrical connector | 74G |
| X26 | Interior and engine wiring harness electrical connector | 3E |
| X26 | Interior and engine wiring harness electrical connector | 15E |
| X26 | Interior and engine wiring harness electrical connector | 44E |
| X26 | Interior and engine wiring harness electrical connector | 34E |
| X26 | Interior and engine wiring harness electrical connector | 54E |
| X26 | Interior and engine wiring harness electrical connector | 72E |
| Y110 | Coolant thermostat | 35L |
| Y110 | Coolant thermostat | 73L |
| Y16/2 | Heating system shutoff valve | 72L |
| Y22/6 | Intake manifold switchover valve | 36L |
| Y22/6 | Intake manifold switchover valve | 74L |
| Y22/9 | Intake manifold tumble flap switchover valve | 37L |
| Y22/9 | Intake manifold tumble flap switchover valve | 75L |
| Y32 | Air pump switchover valve | 34L |
| Y32 | Air pump switchover valve | 71L |
| Y49/4 | Left intake camshaft solenoid | 7L |
| Y49/4 | Left intake camshaft solenoid | 45L |
| Y49/5 | Right intake camshaft solenoid | 22L |
| Y49/5 | Right intake camshaft solenoid | 61L |
| Y49/6 | Left exhaust camshaft solenoid | 8L |
| Y49/6 | Left exhaust camshaft solenoid | 46L |
| Y49/7 | Right exhaust camshaft solenoid | 23L |
| Y49/7 | Right exhaust camshaft solenoid | 62L |
| Y58/1 | Purge control valve | 40L |
| Y58/1 | Purge control valve | 78L |
| Y58/4 | Activated charcoal filter shutoff valve | 41L |
| Y58/4 | Activated charcoal filter shutoff valve | 79L |
| Y62/1 | Cylinder 1 injection valve | 24L |
| Y62/1 | Cylinder 1 injection valve | 63L |
| Y62/2 | Cylinder 2 injection valve | 1L |
| Y62/2 | Cylinder 2 injection valve | 64L |
| Y62/3 | Cylinder 3 injection valve | 2L |
| Y62/3 | Cylinder 3 injection valve | 65L |
| Y62/4 | Cylinder 4 injection valve | 25L |
| Y62/4 | Cylinder 4 injection valve | 42L |
| Y62/5 | Cylinder 5 injection valve | 14L |
| Y62/5 | Cylinder 5 injection valve | 43L |
| Y62/6 | Cylinder 6 injection valve | 17L |
| Y62/6 | Cylinder 6 injection valve | 44L |
| Y62/7 | Cylinder 7 injection valve | 18L |
| Y62/8 | Cylinder 8 injection valve | 3L |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 3G |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 44G |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 9G |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 48G |
| Z7/36 | Circuit 87 M2e connector sleeve | 40E |
| Z7/36 | Circuit 87 M2e connector sleeve | 77E |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 31G |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 68G |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 34G |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 72G |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 22G |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 61G |
| Z7/38z2 | Circuit 87 M1i connector sleeve | 15G |
| Z7/38z2 | Circuit 87 M1i connector sleeve | 54G |
