Replace fuel injector sealing ring - AR07.03-P-0004-01MM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 133, 152.9, 157, 176, 177, 178, 270, 274, 276, 278

Fig 1: Identifying Assembly Tool (272 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	Adolf Wurth GmbH & Co. KG

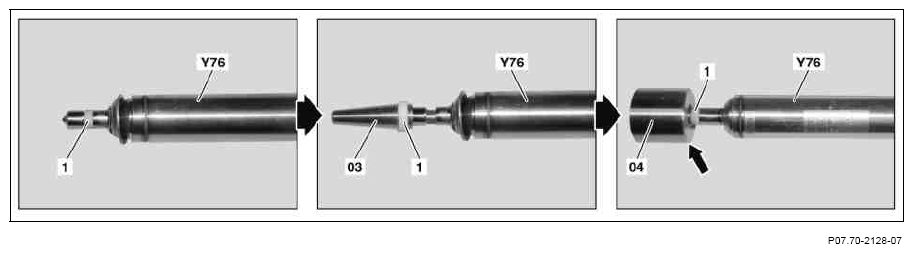

Fig 2: Removing Sealing Rings

Courtesy of MERCEDES-BENZ USA

Fuel injectors (Y76) must be installed immediately after calibration of the sealing rings (1).

Since sealing rings (1) swell under the influence of air humidity, they may otherwise be damaged during assembly.

Remove sealing ring (1)

Completely remove sealing ring (1) from fuel injector (Y76).
Do not use sharp-edged tools.

The sealing surfaces can be damaged otherwise.
Clean base surface for sealing ring (1) on fuel injector (Y76).
Install sealing ring (1)
Push sealing ring (1) onto guide hood (03) and place this on the injection nozzle (Y76).
Slowly push sealing ring (1) with the fingers over the guide hood (03) onto the injection nozzle (Y76) in the sealing groove.
Place assembly sleeve (04) on the fuel injector (Y76).
The side marked with "A" on the assembly sleeve (04) must point towards to fuel injector (Y76).
Push assembly sleeve (04) completely while turning slightly onto the fuel injector (Y76).
