Remove injection nozzles - AR07.03-P-0004-03MM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 133, 152.9, 157, 176, 177, 178, 270, 274, 276, 278
Courtesy of MERCEDES-BENZ USA
Do not use sharp-edged tools.
The fuel injectors (Y76) can get damaged otherwise and leaks and malfunctions can occur.

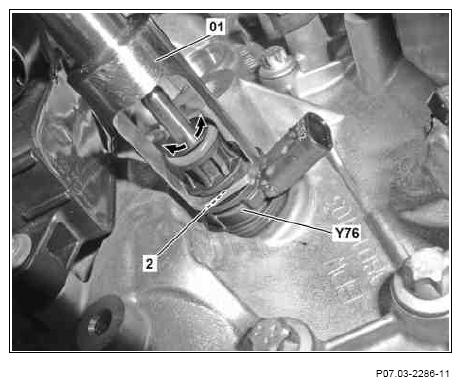

Place extractor (01) on injection nozzle (Y76).
Press extractor (01) up to end stop into the injection nozzle (Y76) support guide (2).
-
Turn injection nozzle (Y76) with extractor (01) back and forth (arrows).
This is loosened from cylinder head through turning back and forth (arrows) of the injection nozzle (Y76).
- Pull out injection nozzle (Y76) using the
extractor (01).
Do not pull out fuel injectors (Y76) sharply. The fuel injector (Y76) will be damaged otherwise.
Oil which escapes for disassembly of the fuel injectors (Y76), is safe and the fuel injectors (Y76) can be reused.
