Overview of system components for gasoline injection and ignition system with direct injection - GF07.70-P-9998MMO
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.9 in MODEL 212.095
Vehicle view up to model year 2014

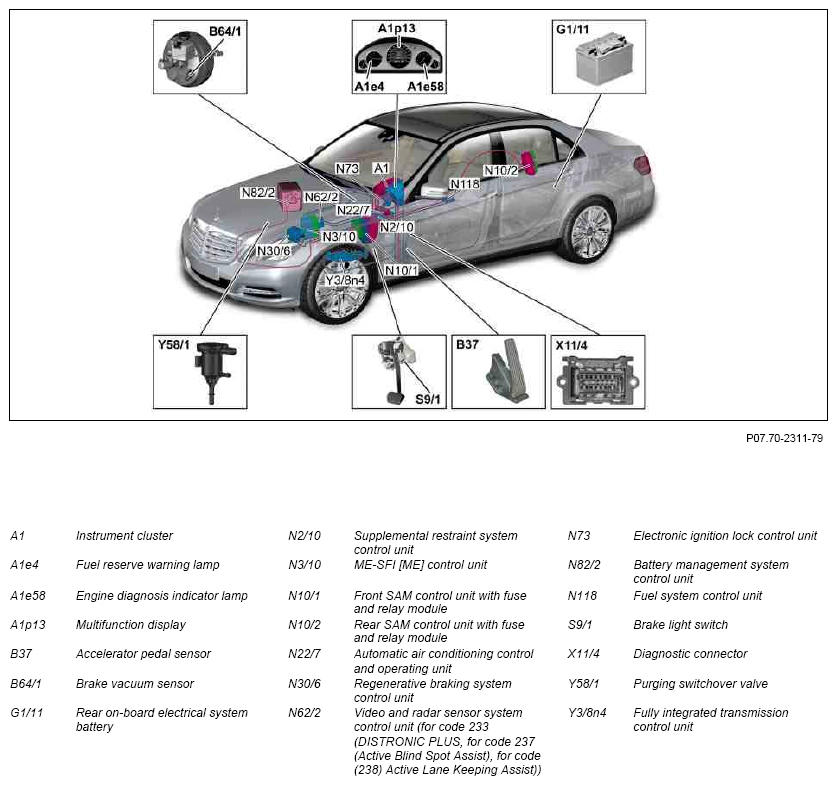

Fig 1: Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - View Up To Model Year 2014
Vehicle view as of model year 2014

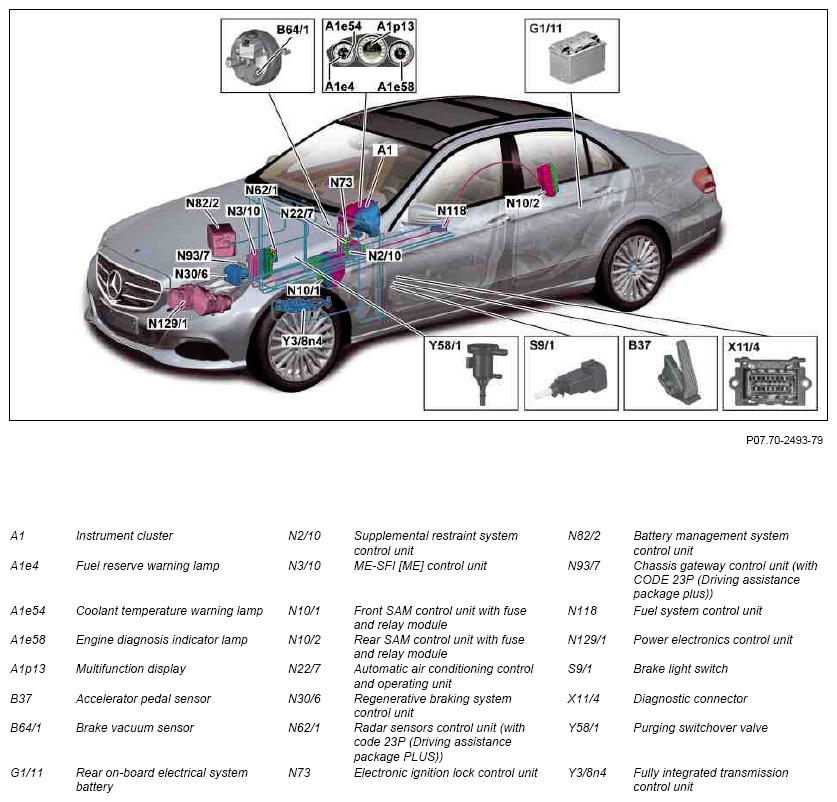

Fig 2: Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - View As Of Model Year 2014

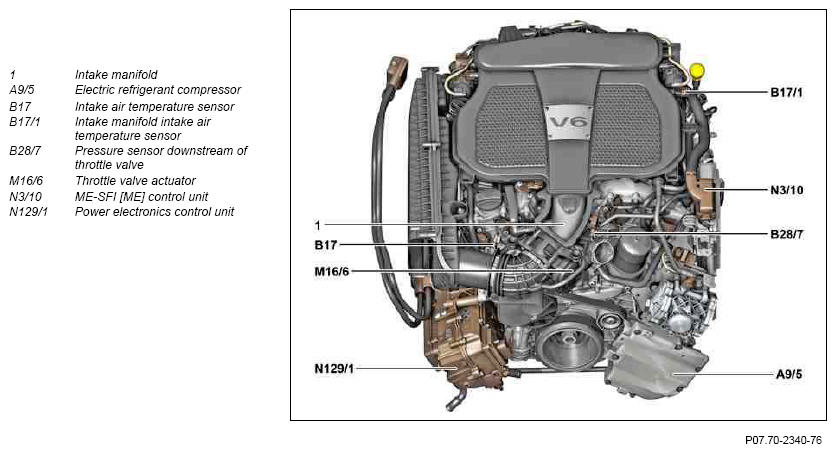

View of engine from the front

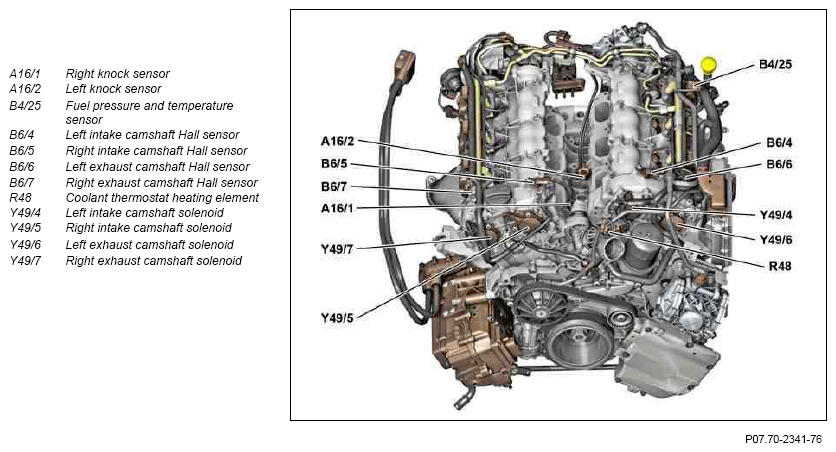

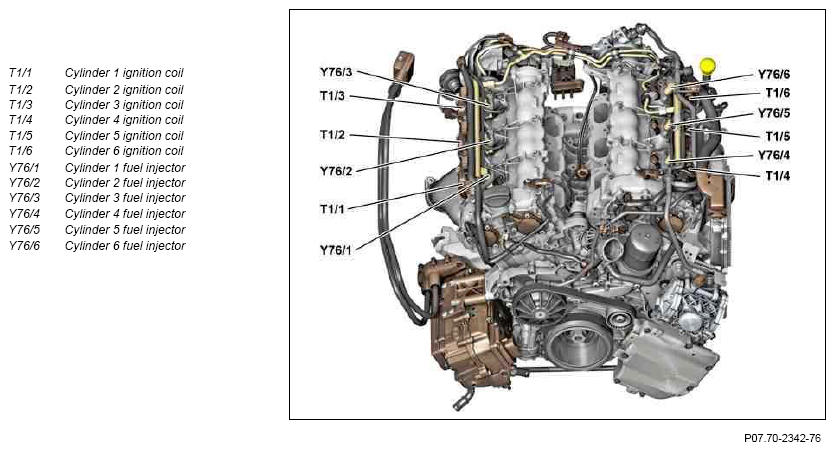

View of the engine from above
View of the engine from above

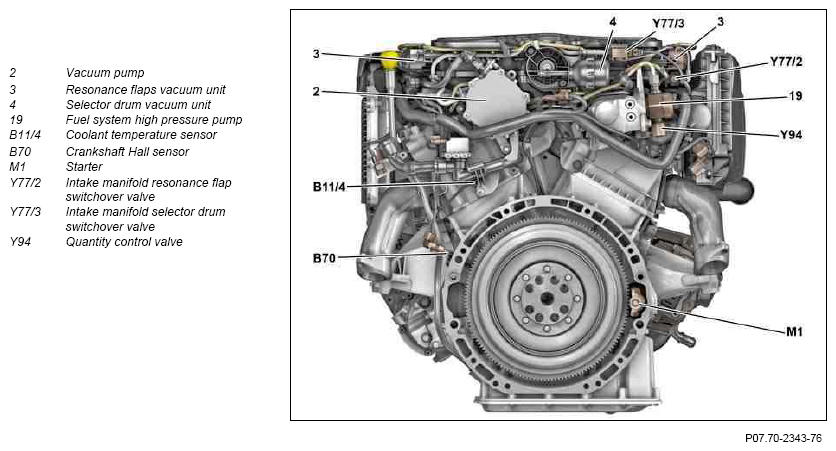

View of engine from the rear

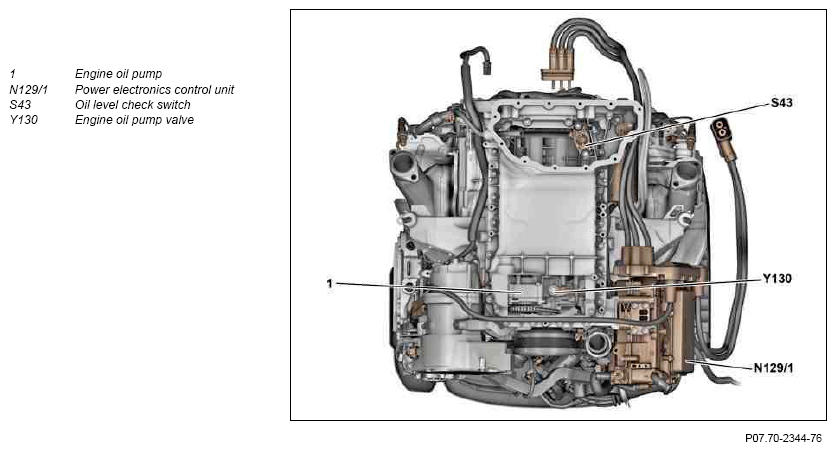

View of engine from the below

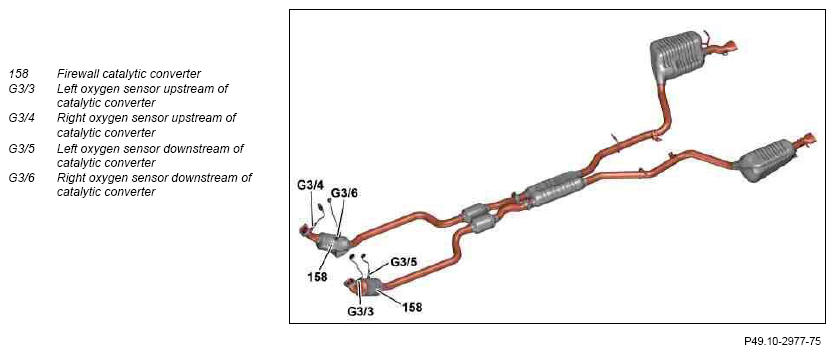

View of exhaust system

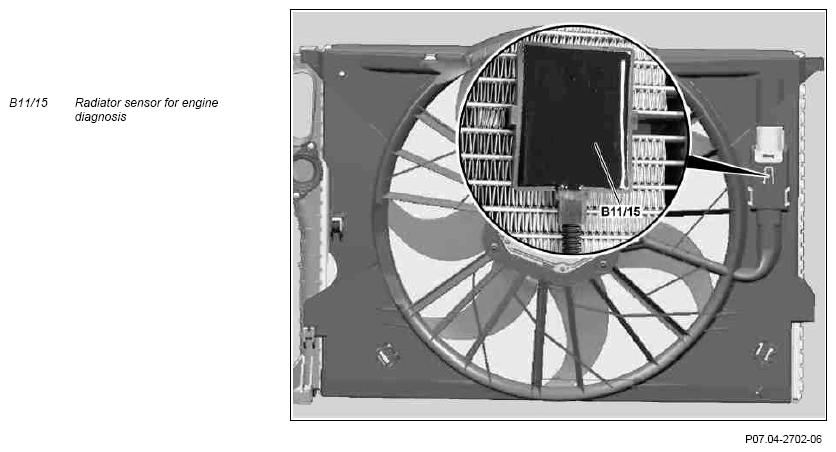

View of the radiator from the rear

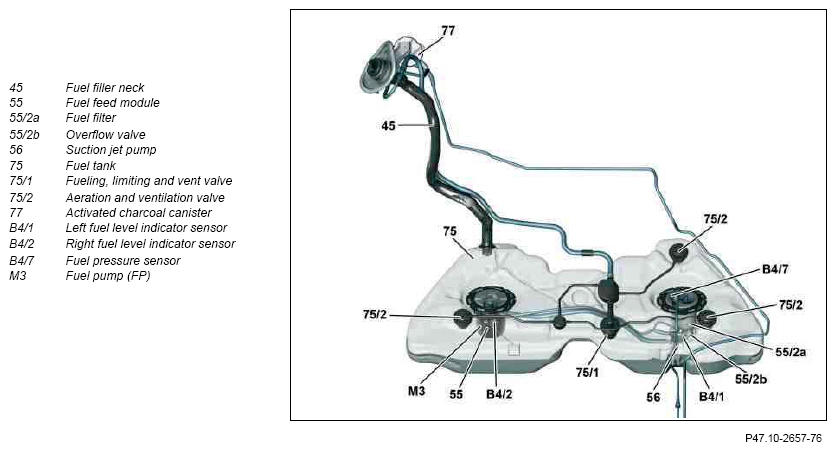

Phantom view of the fuel tank (except code 494 (USA version))

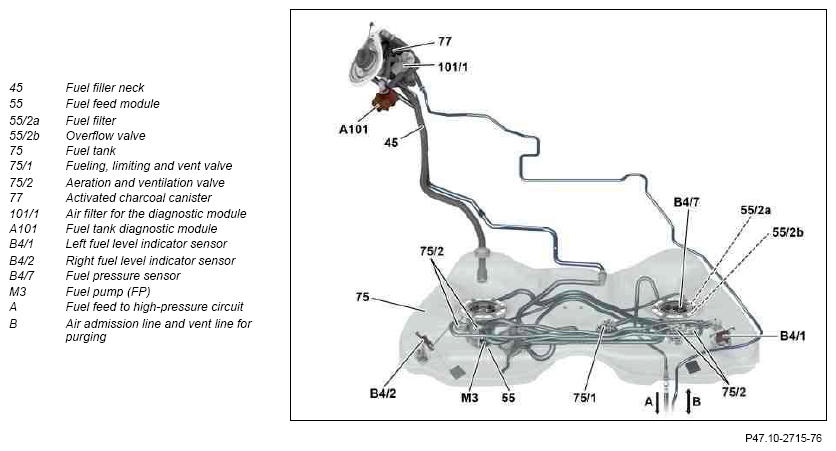

Phantom view of fuel tank (with CODE 494 (USA version))

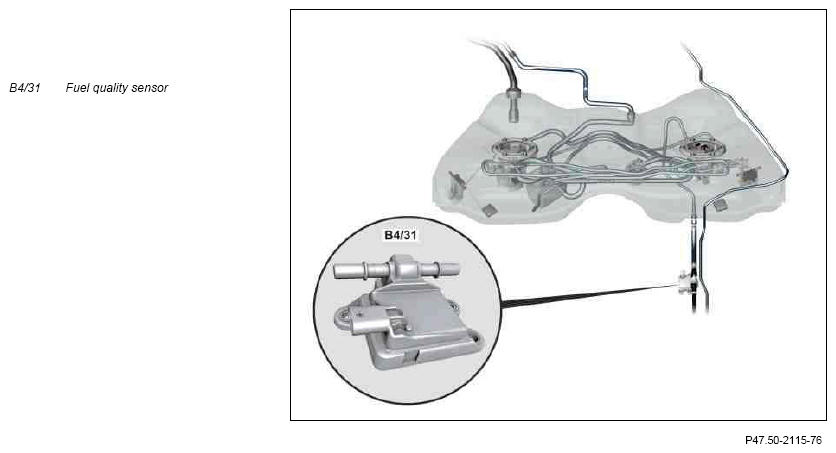

Phantom view of the fuel tank (for code 929 (Engine for ethanol fuel))

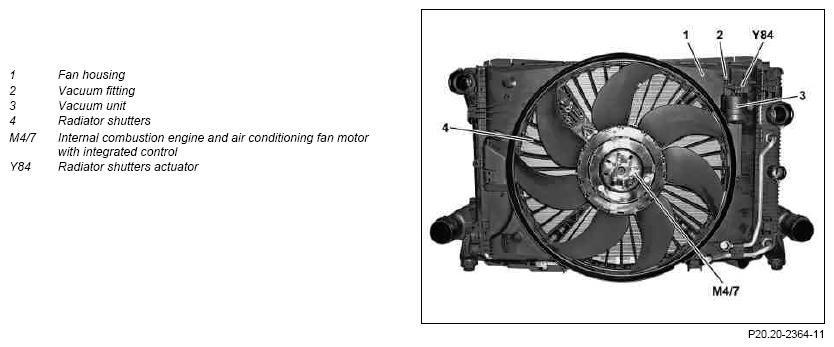

View of the radiator from the rear (for code 494 (USA version) and code 917 (Partial zero emission vehicle emission USA))

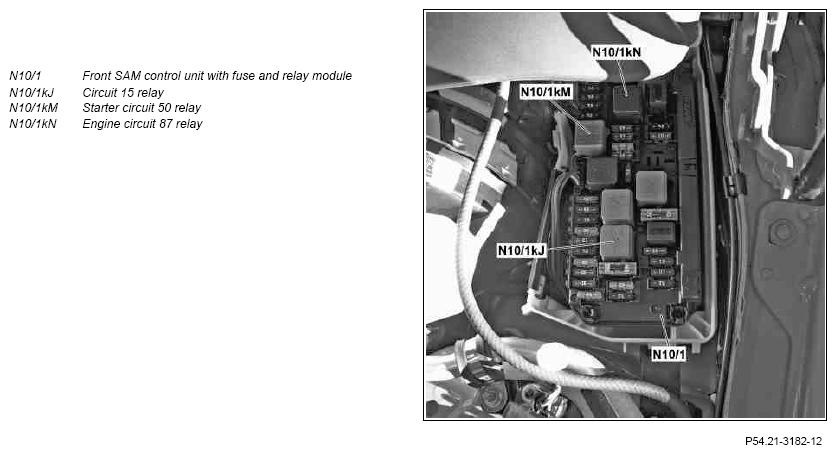

View of the engine compartment at the rear left
| Component description for instrument cluster | A1 | GF54.30-P-6000FL | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FL | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MMO | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FL | |
| Component description for automatic air conditioning control and operating unit | MODEL 212.095 with ENGINE 276.9 without CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLA | |
| MODEL 212.095 with ENGINE 276.9 with CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLB | ||
| Component description for regenerative braking system control unit | MODEL 212.095 with ENGINE 276.9 up to model year 2014 N30/6 |
GF42.22-P-1100FLH | |
| MODEL 212.095 with ENGINE 276.9 as of model year 2014 N30/6 |
GF42.22-P-1100FLM | ||
| Component description for radar sensors control unit | MODEL 212.095 with ENGINE 276.9 as of model year 2014 with CODE 23P (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301FLM | |
| Component description for video and radar sensor system control unit | MODEL 212.095 up to 2/28/13 with ENGINE 276.9 with CODE 233 (DISTRONIC PLUS) with CODE 237 (Active Blind Spot Assist) with CODE 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Component description for battery management system control unit | MODEL 212.095 with ENGINE 276.9 up to model year 2014 N82/2 |
GF54.10-P-3012FLH | |
| MODEL 212.095 with ENGINE 276.9 as of model year 2014 N82/2 |
GF54.10-P-3012FLM | ||
| Component description for chassis gateway control unit | MODEL 212.095 with ENGINE 276.9 as of model year 2014 with CODE 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010FLM | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MMO | |
| Component description for power electronics control unit | MODEL 212.095 with ENGINE 276.9 up to model year 2014 N129/1 |
GF08.20-P-1001FLH | |
| MODEL 212.095 with ENGINE 276.9 as of model year 2014 N129/1 |
GF08.20-P-1001FLM | ||
| Component description for fully integrated transmission control unit | TRANSMISSION 724.2 in MODEL 212.095 with ENGINE 276.9 Y38n4 |
GF27.60-P-5165AHO | |
| Table of contents for function description of gasoline injection and ignition system with direct injection | ENGINE 276.9 in MODEL 212.095 | GF07.70-P-0998MMO |
