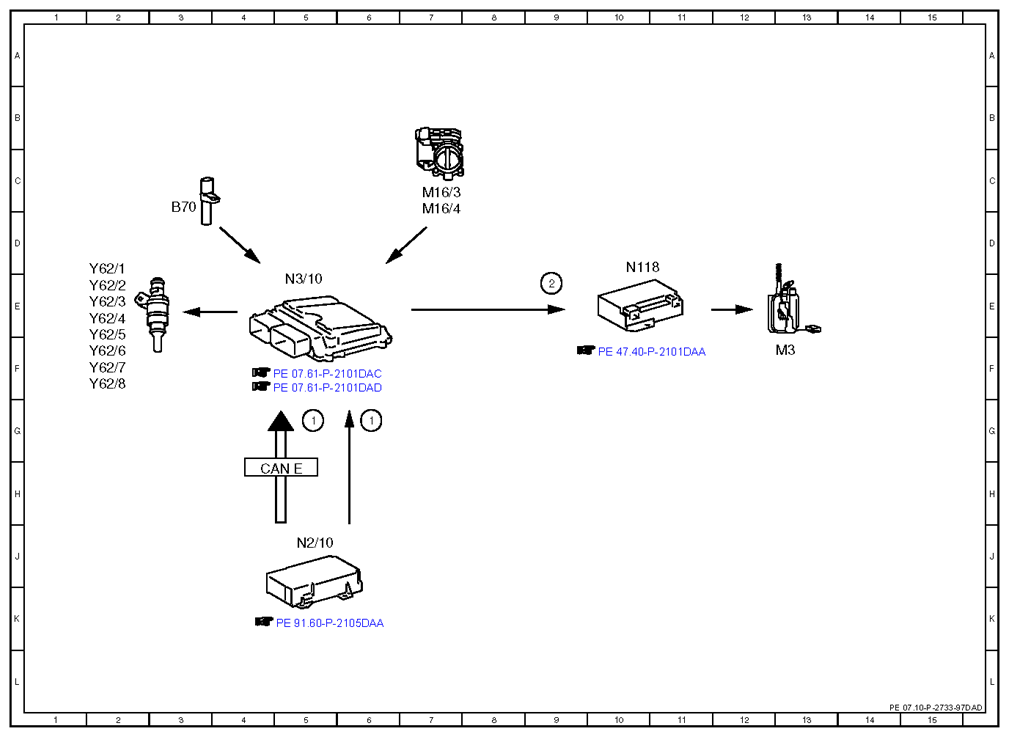

Electrical function schematic for safety fuel shutoff - PE07.10-P-2733-97DAD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 5G |
| 1 | Crash, signal | 6G |
| 2 | Fuel pump, request OFF | 9E |
| B70 | Crankshaft Hall sensor | 3D |
| CAN E | Chassis CAN | 4H |
| M16/3 | Front throttle valve actuator | 7C |
| M16/4 | Rear throttle valve actuator | 7D |
| M3 | Fuel pump (FP) | 13F |
| N118 | Fuel pump control unit | 10D |
| N2/10 | Supplemental restraint system control unit | 5J |
| N3/10 | ME-SFI [ME] control unit | 5E |
| Y62/1 | Cylinder 1 injection valve | 2D |
| Y62/2 | Cylinder 2 injection valve | 2E |
| Y62/3 | Cylinder 3 injection valve | 2E |
| Y62/4 | Cylinder 4 injection valve | 2E |
| Y62/5 | Cylinder 5 injection valve | 2F |
| Y62/6 | Cylinder 6 injection valve | 2F |
| Y62/7 | Cylinder 7 injection valve | 2F |
| Y62/8 | Cylinder 8 injection valve | 2F |
