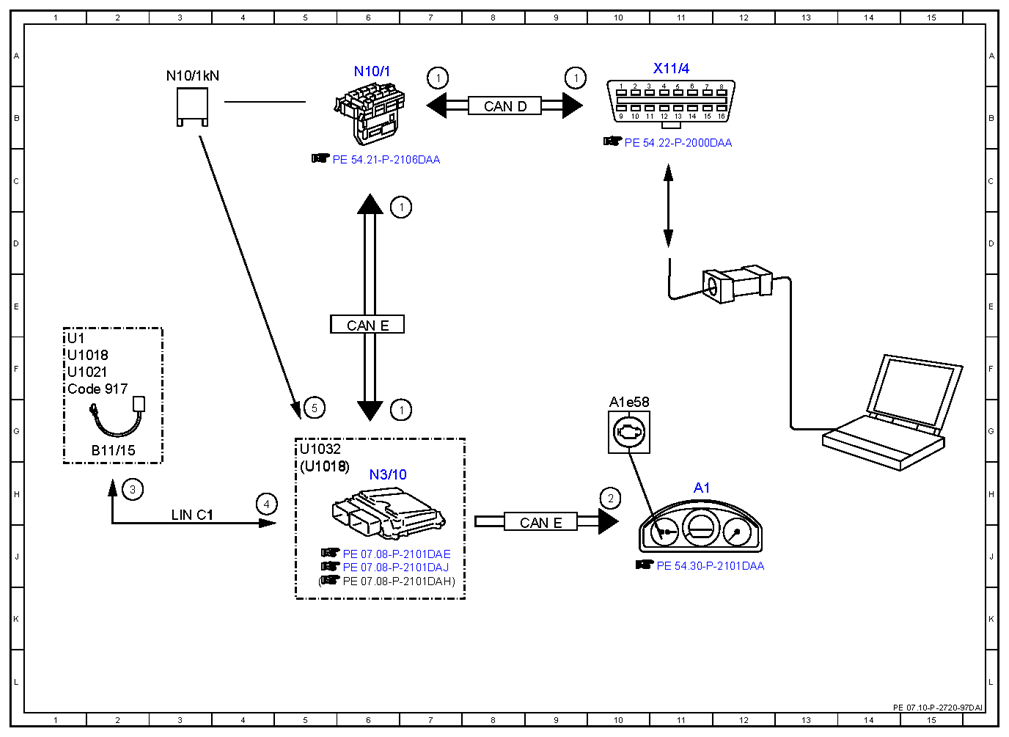

Electrical function schematic for on-board diagnosis - PE07.10-P-2720-97DAI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157.9, 276.9, 278.9 in MODEL 212 up to model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine control diagnosis, communication | 9A |
| 1 | Engine control diagnosis, communication | 7A |
| 1 | Engine control diagnosis, communication | 6C |
| 1 | Engine control diagnosis, communication | 6G |
| 2 | Engine diagnosis indicator lamp, actuation | 10H |
| 3 | Radiator sensor for engine diagnosis, request | 2H |
| 4 | Radiator sensor for engine diagnosis, status | 4H |
| 5 | Circuit 87, status | 5G |
| A1 | Instrument cluster | 11H |
| A1e58 | Engine diagnosis indicator lamp | 10G |
| B11/15 | Radiator sensor for engine diagnosis | 2G |
| CAN D | Diagnostic CAN | 8B |
| CAN E | Chassis CAN | 6E |
| CAN E | Chassis CAN | 9J |
| Code 917 | PZEV emission USA | 1F |
| LIN C1 | Drive train LIN | 3H |
| N10/1 | Front SAM control unit with fuse and relay module | 6A |
| N10/1kN | Engine circuit 87 relay | 3A |
| N3/10 | ME-SFI [ME] control unit | 6H |
| U1 | Valid for USA | 1F |
| U1018 | Valid for gasoline engine 276 | 1F |
| U1018 | Valid for gasoline engine 276 | 5H |
| U1021 | Not valid for gasoline engine with stratified operation | 1F |
| U1032 | Valid for engine 278 and 157 | 5G |
| X11/4 | Diagnostic connector | 11A |
