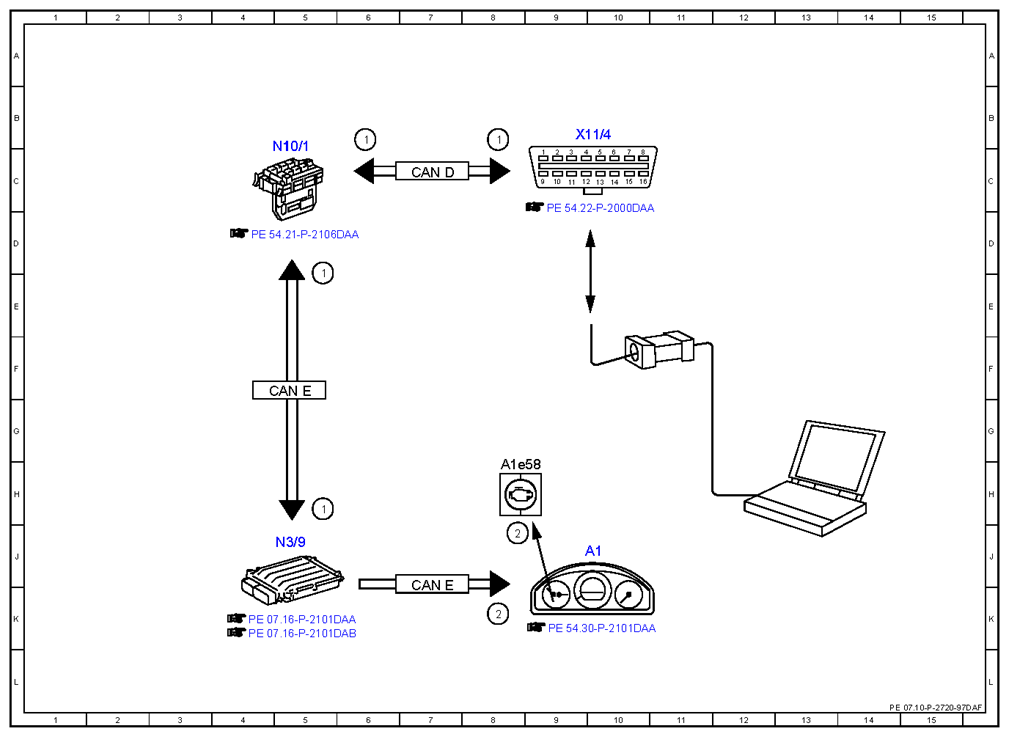

Electrical function schematic for on-board diagnosis - PE07.10-P-2720-97DAF
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642.8 in MODEL 212 up to model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine control diagnosis, communication | 8B |
| 1 | Engine control diagnosis, communication | 6B |
| 1 | Engine control diagnosis, communication | 5E |
| 1 | Engine control diagnosis, communication | 5H |
| 2 | Engine diagnosis indicator lamp, actuation | 8J |
| 2 | Engine diagnosis indicator lamp, actuation | 8K |
| A1 | Instrument cluster | 10J |
| A1e58 | Engine diagnosis indicator lamp | 8H |
| CAN D | Diagnostic CAN | 7C |
| CAN E | Chassis CAN | 5F |
| CAN E | Chassis CAN | 7K |
| N10/1 | Front SAM control unit with fuse and relay module | 5C |
| N3/9 | CDI control unit | 5J |
| X11/4 | Diagnostic connector | 9B |
