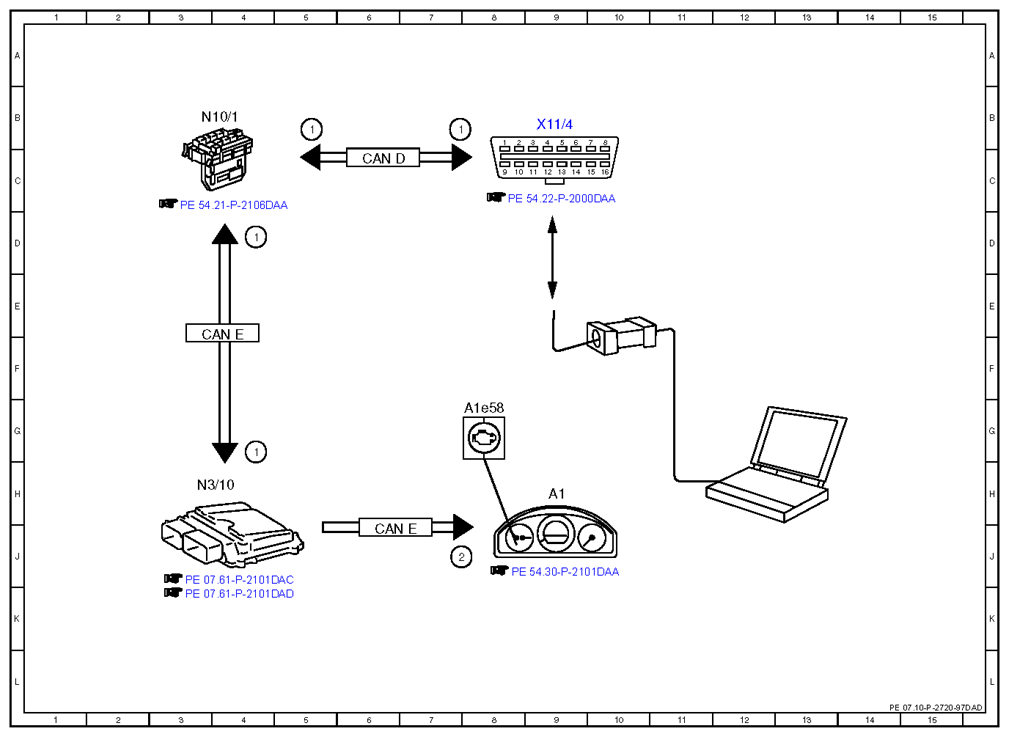

Electrical function schematic for on-board diagnosis - PE07.10-P-2720-97DAD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine control diagnosis, communication | 4G |
| 1 | Engine control diagnosis, communication | 5B |
| 1 | Engine control diagnosis, communication | 4D |
| 1 | Engine control diagnosis, communication | 7B |
| 2 | Engine diagnosis indicator lamp, actuation | 7J |
| A1 | Instrument cluster | 9H |
| A1e58 | Engine diagnosis indicator lamp | 8G |
| CAN D | Diagnostic CAN | 6C |
| CAN E | Chassis CAN | 4E |
| CAN E | Chassis CAN | 6H |
| N10/1 | Front SAM control unit with fuse and relay module | 3B |
| N3/10 | ME-SFI [ME] control unit | 3H |
| X11/4 | Diagnostic connector | 9B |
