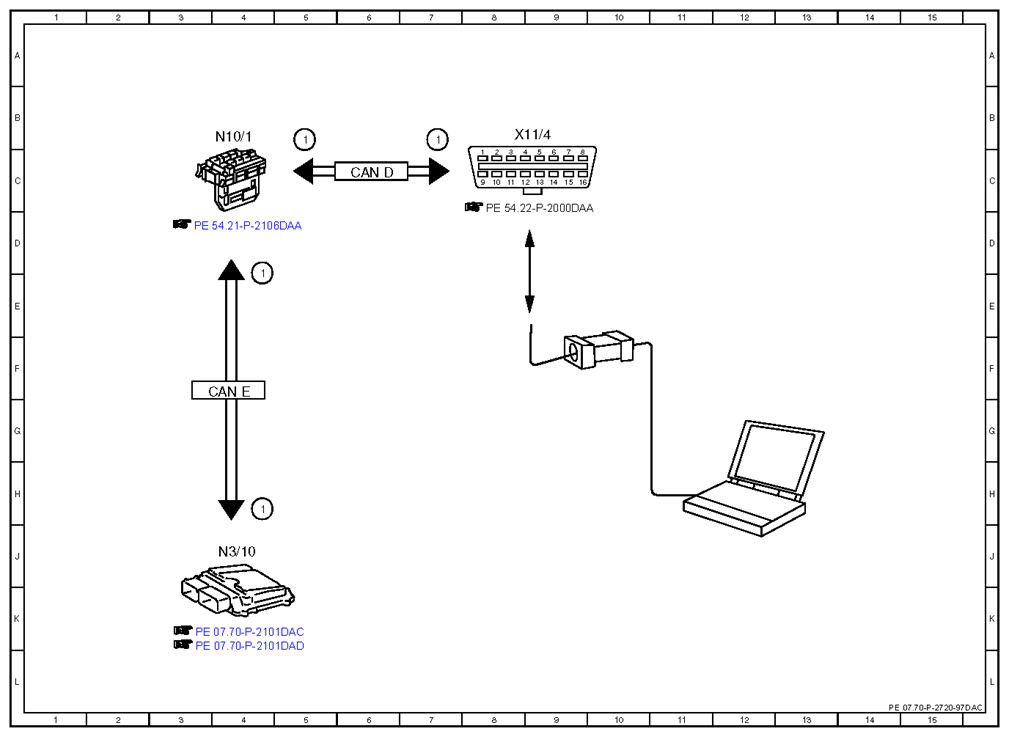

Electrical function schematic for on-board diagnosis - PE07.10-P-2720-97DAC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272.98 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine control diagnosis, communication | 7B |
| 1 | Engine control diagnosis, communication | 5B |
| 1 | Engine control diagnosis, communication | 4E |
| 1 | Engine control diagnosis, communication | 4H |
| CAN D | Diagnostic CAN | 6C |
| CAN E | Chassis CAN | 4F |
| N10/1 | Front SAM control unit with fuse and relay module | 4B |
| N3/10 | ME-SFI [ME] control unit | 4J |
| X11/4 | Diagnostic connector | 8B |
