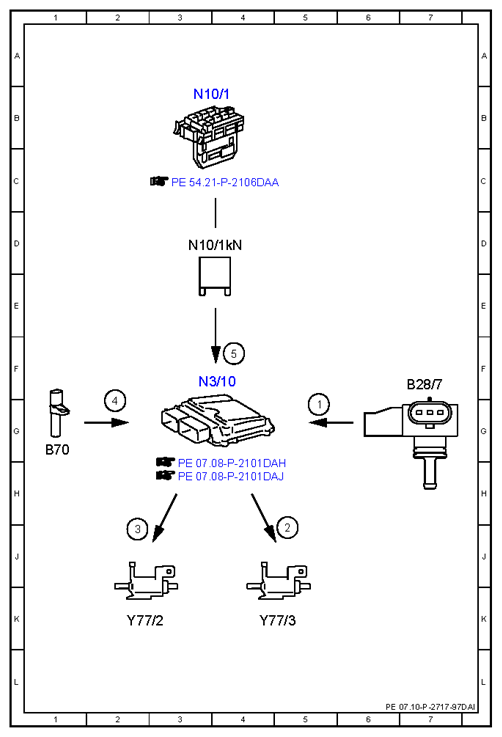

Electrical function schematic for intake manifold switchover - PE07.10-P-2717-97DAI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 276 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 5G |
| 2 | Selector drum switchover valve, actuation | 5J |
| 3 | Resonance flap switchover valve, actuation | 2J |
| 4 | Engine speed, signal | 2G |
| 5 | Circuit 87, status | 4F |
| B28/7 | Pressure sensor downstream of throttle valve | 7F |
| B70 | Crankshaft Hall sensor | 1G |
| N10/1 | Front SAM control unit with fuse and relay module | 3B |
| N10/1kN | Engine circuit 87 relay | 3D |
| N3/10 | ME-SFI [ME] control unit | 3F |
| Y77/2 | Intake manifold resonance flap switchover valve | 2K |
| Y77/3 | Intake manifold selector drum switchover valve | 4K |
