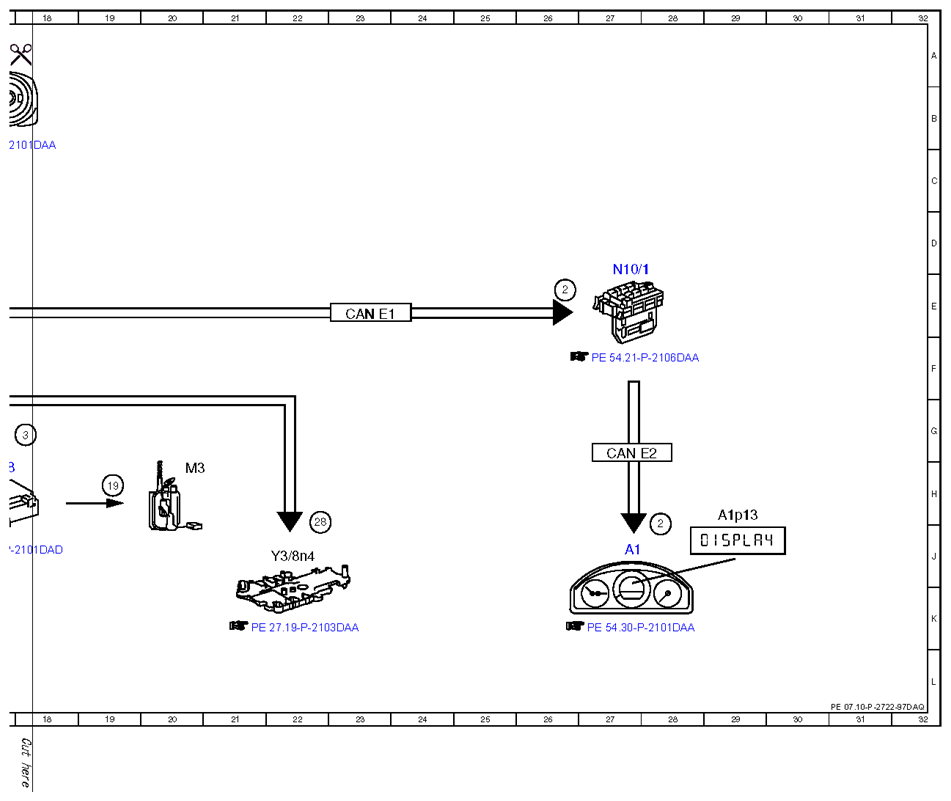

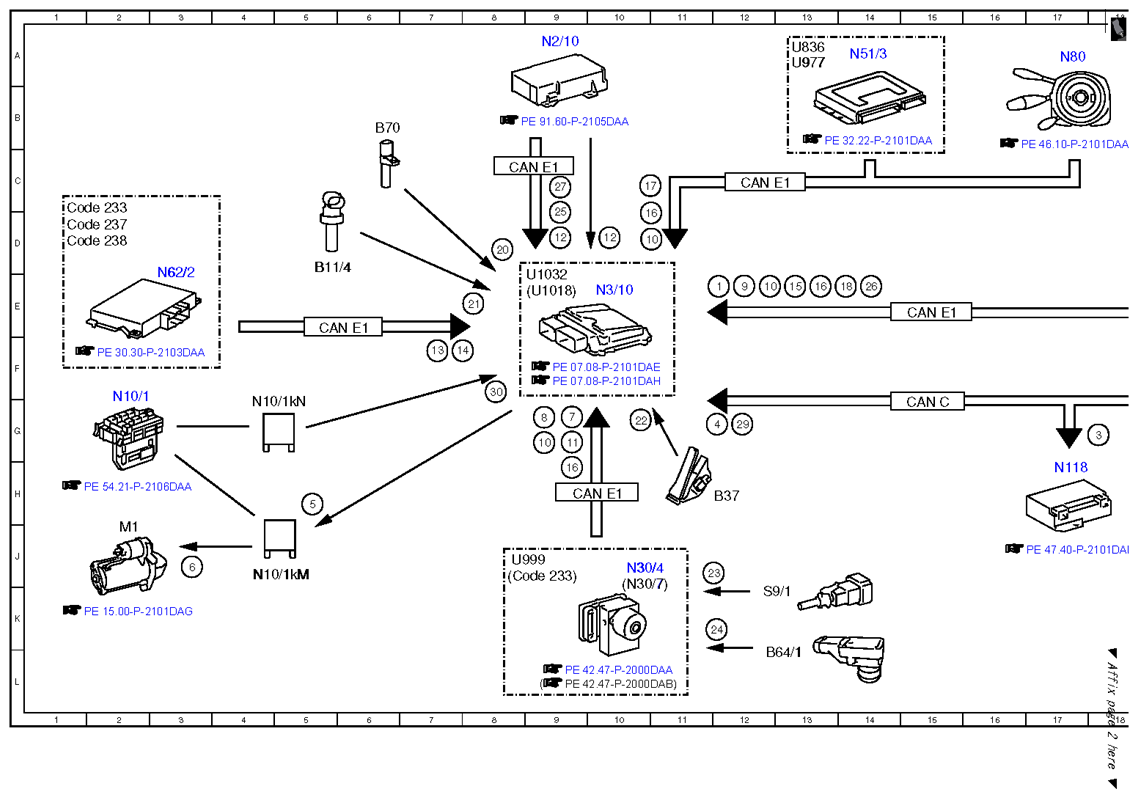

Electrical function schematic for engine timing start stop - PE07.10-P-2722-97DAQ
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157.9, 276.8/9, 278.9 in MODEL 212 (except 212.095) as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Air conditioning, status | 12E |
| 10 | Engine start, request | 9G |
| 10 | Engine start, request | 10D |
| 10 | Engine start, request | 12E |
| 11 | Engine stop enable, status | 9G |
| 12 | Crash, signal | 9D |
| 12 | Crash, signal | 10D |
| 13 | Engine torque, increase request | 7F |
| 14 | Engine torque, reduce request | 7F |
| 15 | ECO start/stop function button, status | 13E |
| 16 | Engine stop prohibited, request | 9H |
| 16 | Engine stop prohibited, request | 13E |
| 16 | Engine stop prohibited, request | 10D |
| 17 | Steering angle sensor, signal | 10C |
| 18 | Door rotary tumbler switch, status | 14E |
| 19 | Fuel pump, actuation | 19H |
| 2 | Instrument cluster, message | 26E |
| 2 | Instrument cluster, message | 28H |
| 20 | Engine speed, signal | 8D |
| 21 | Coolant temperature sensor, signal | 8E |
| 22 | Accelerator pedal sensor, signal | 10G |
| 23 | Brake light switch, signal | 11J |
| 24 | Vacuum sensor, signal | 12K |
| 25 | Seat belt buckle restraint system switch, status | 9D |
| 26 | ATA [EDW] engine hood switch, status | 14E |
| 27 | Engine hood contact switch, status | 9C |
| 28 | Gear range, request | 22J |
| 29 | Gear range, status | 12G |
| 3 | Fuel pump, specified pressure request | 18G |
| 30 | Circuit 87, status | 8F |
| 4 | Fuel pressure, status | 12G |
| 5 | Starter circuit 50 relay, actuation | 5H |
| 6 | Starter, actuation | 3J |
| 7 | Brake light switch, status | 9G |
| 8 | Wheel speed, signal | 9G |
| 9 | Vehicle speed, signal | 12E |
| A1 | Instrument cluster | 27J |
| A1p13 | Multifunction display | 29H |
| B11/4 | Coolant temperature sensor | 5D |
| B37 | Accelerator pedal sensor | 12H |
| B64/1 | Brake vacuum sensor | 12L |
| B70 | Crankshaft Hall sensor | 6B |
| CAN C | Drive train CAN | 15G |
| CAN E1 | Chassis CAN 1 | 8C |
| CAN E1 | Chassis CAN 1 | 15E |
| CAN E1 | Chassis CAN 1 | 12C |
| CAN E1 | Chassis CAN 1 | 23E |
| CAN E1 | Chassis CAN 1 | 5E |
| CAN E1 | Chassis CAN 1 | 9H |
| CAN E2 | Chassis CAN 2 | 27G |
| Code 233 | DISTRONIC PLUS | 8J |
| Code 233 | DISTRONIC PLUS | 1D |
| Code 237 | Active Blind Spot Assist | 1D |
| Code 238 | Active Lane Keeping Assist | 1D |
| M1 | Starter | 2J |
| M3 | Fuel pump (FP) | 20H |
| N10/1 | Front SAM control unit with fuse and relay module | 27D |
| N10/1 | Front SAM control unit with fuse and relay module | 2G |
| N10/1kM | Starter circuit 50 relay | 4J |
| N10/1kN | Engine circuit 87 relay | 4G |
| N118 | Fuel pump control unit | 17H |
| N2/10 | Supplemental restraint system control unit | 9A |
| N3/10 | ME-SFI [ME] control unit | 10E |
| N30/4 | Electronic Stability Program control unit | 10J |
| N30/7 | Premium Electronic Stability Program control unit | 10K |
| N51/3 | AIRMATIC control unit | 14A |
| N62/2 | Video and radar sensor system control unit | 3E |
| N80 | Steering column module control unit | 17A |
| S9/1 | Stop lamp switch | 12K |
| U1018 | Valid for gasoline engine 276 | 9E |
| U1032 | Valid for engine 278 and 157 | 9E |
| U836 | Valid for AIRMATIC | 13A |
| U977 | Not valid for mild hybrid drive | 13A |
| U999 | Not valid with DISTRONIC PLUS | 8J |
| Y3/8n4 | Fully integrated transmission control unit | 22J |
