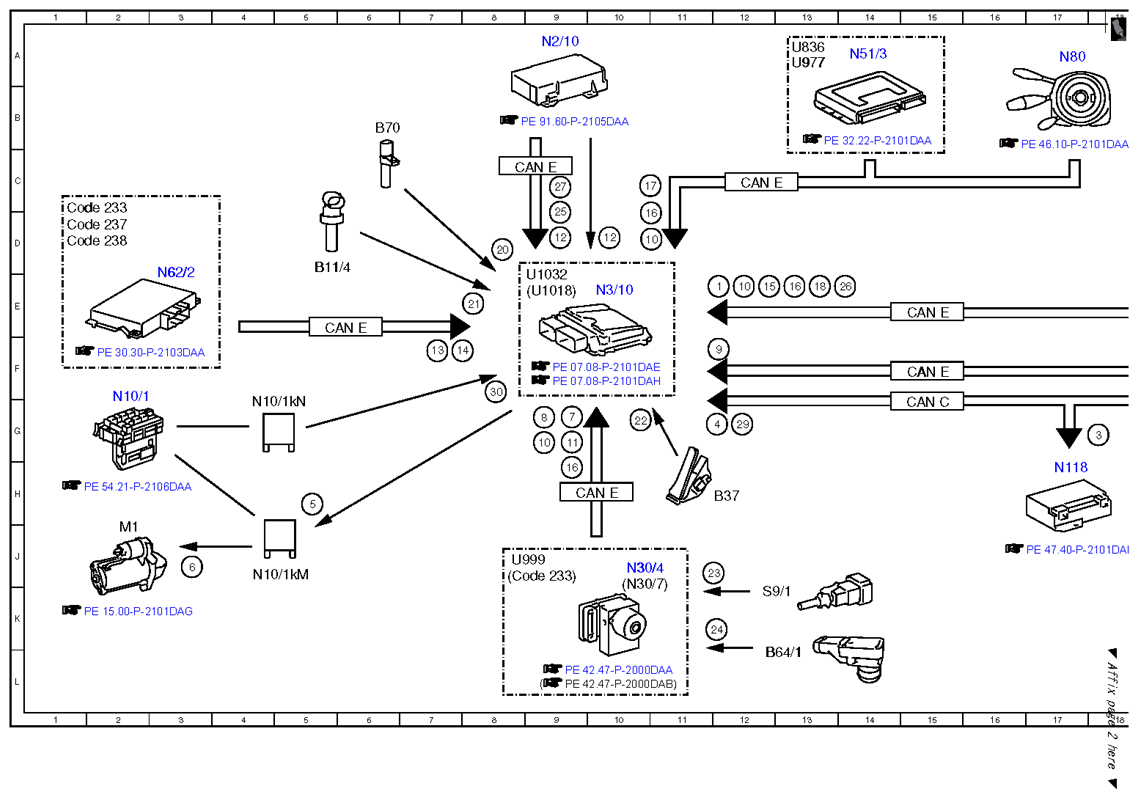

Electrical function schematic for engine timing start stop - PE07.10-P-2722-97DAI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157.9, 276.9, 278.9 in MODEL 212 (except 212.095) up to model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Air conditioning, status | 12E |
| 10 | Engine start, request | 9G |
| 10 | Engine start, request | 10D |
| 10 | Engine start, request | 12E |
| 11 | Engine stop enable, status | 9G |
| 12 | Crash, signal | 9D |
| 12 | Crash, signal | 10D |
| 13 | Engine torque, increase request | 7F |
| 14 | Engine torque, reduce request | 8F |
| 15 | ECO start/stop function button, status | 12E |
| 16 | Engine stop prohibited, request | 9H |
| 16 | Engine stop prohibited, request | 13E |
| 16 | Engine stop prohibited, request | 10D |
| 17 | Steering angle sensor, signal | 10C |
| 18 | Door rotary tumbler switch, status | 13E |
| 19 | Fuel pump, actuation | 19H |
| 2 | Instrument cluster, message | 25H |
| 20 | Engine speed, signal | 8D |
| 21 | Coolant temperature sensor, signal | 8E |
| 22 | Accelerator pedal sensor, signal | 10G |
| 23 | Brake light switch, signal | 11J |
| 24 | Vacuum sensor, signal | 12K |
| 25 | Seat belt buckle restraint system switch, status | 9D |
| 26 | ATA [EDW] engine hood switch, status | 14E |
| 27 | Engine hood contact switch, status | 9C |
| 28 | Gear range, request | 22J |
| 29 | Gear range, status | 12G |
| 3 | Fuel pump, specified pressure request | 18G |
| 30 | Circuit 87, status | 8F |
| 4 | Fuel pressure, status | 12G |
| 5 | Starter circuit 50 relay, actuation | 5H |
| 6 | Starter, actuation | 3J |
| 7 | Brake light switch, status | 9G |
| 8 | Wheel speed, signal | 9G |
| 9 | Vehicle speed, signal | 12F |
| A1 | Instrument cluster | 25J |
| A1p13 | Multifunction display | 26H |
| B11/4 | Coolant temperature sensor | 5D |
| B37 | Accelerator pedal sensor | 12H |
| B64/1 | Brake vacuum sensor | 12L |
| B70 | Crankshaft Hall sensor | 6B |
| CAN C | Drive train CAN | 15G |
| CAN E | Chassis CAN | 10H |
| CAN E | Chassis CAN | 9C |
| CAN E | Chassis CAN | 6E |
| CAN E | Chassis CAN | 15F |
| CAN E | Chassis CAN | 15E |
| CAN E | Chassis CAN | 12C |
| CAN E | Chassis CAN | 23E |
| CAN E | Chassis CAN | 23F |
| Code 233 | DISTRONIC PLUS | 8J |
| Code 233 | DISTRONIC PLUS | 1D |
| Code 237 | Active Blind Spot Assist | 1D |
| Code 238 | Active Lane Keeping Assist | 1D |
| M1 | Starter | 2J |
| M3 | Fuel pump (FP) | 20H |
| N10/1 | Front SAM control unit with fuse and relay module | 27D |
| N10/1 | Front SAM control unit with fuse and relay module | 2G |
| N10/1kM | Starter circuit 50 relay | 4J |
| N10/1kN | Engine circuit 87 relay | 4G |
| N118 | Fuel pump control unit | 17H |
| N2/10 | Supplemental restraint system control unit | 9A |
| N3/10 | ME-SFI [ME] control unit | 10E |
| N30/4 | Electronic Stability Program control unit | 10J |
| N30/7 | Premium Electronic Stability Program control unit | 10K |
| N51/3 | AIRMATIC control unit | 14A |
| N62/2 | Video and radar sensor system control unit | 3E |
| N80 | Steering column module control unit | 17A |
| S9/1 | Stop lamp switch | 12K |
| U1018 | Valid for gasoline engine 276 | 9E |
| U1032 | Valid for engine 278 and 157 | 9E |
| U836 | Valid for AIRMATIC | 13A |
| U977 | Not valid for mild hybrid drive | 13A |
| U999 | Not valid with DISTRONIC PLUS | 8J |
| Y3/8n4 | Fully integrated transmission control unit | 22J |
