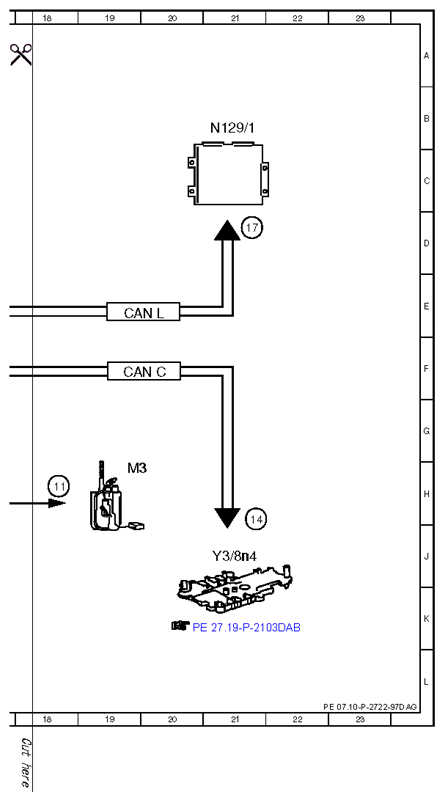

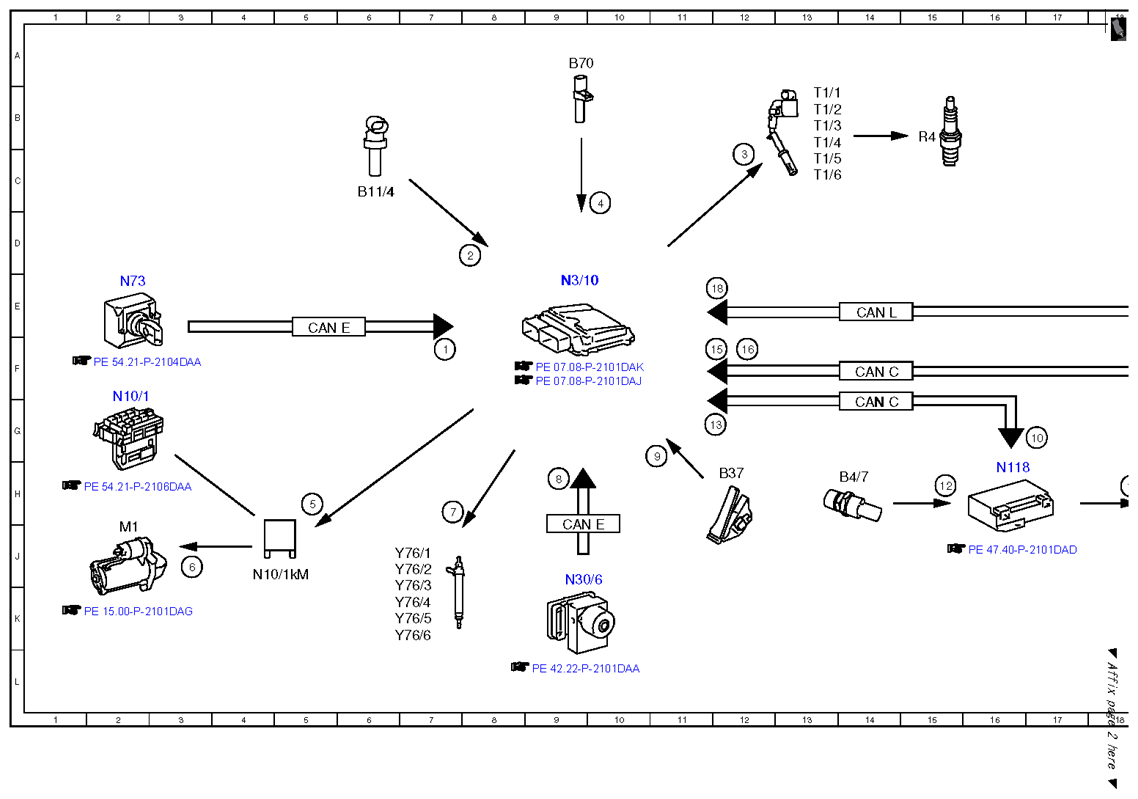

Electrical function schematic for engine timing start stop - PE07.10-P-2722-97DAG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.9 in MODEL 212.095 up to model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine start, request | 7F |
| 10 | Fuel pump, specified pressure request | 17G |
| 11 | Fuel pump, actuation | 18H |
| 12 | Fuel pressure, signal | 15H |
| 13 | Fuel pressure, status | 11G |
| 14 | Wet clutch, request | 21H |
| 15 | Wet clutch, status | 12F |
| 16 | Transmission oil temperature, signal | 12F |
| 17 | Electric machine motor torque, request | 21D |
| 18 | Electric machine motor torque, signal | 12E |
| 2 | Transmission control, request | 8D |
| 3 | Ignition coils, actuation | 12C |
| 4 | Engine speed, signal | 10C |
| 5 | Starter circuit 50 relay, actuation | 5H |
| 6 | Starter, actuation | 3J |
| 7 | Fuel injectors, actuation | 7H |
| 8 | Wheel speed, signal | 9H |
| 9 | Accelerator pedal sensor, signal | 11G |
| B11/4 | Coolant temperature sensor | 6C |
| B37 | Accelerator pedal sensor | 12H |
| B4/7 | Fuel pressure sensor | 14H |
| B70 | Crankshaft Hall sensor | 9A |
| CAN C | Drive train CAN | 14G |
| CAN C | Drive train CAN | 14F |
| CAN C | Drive train CAN | 19F |
| CAN E | Chassis CAN | 9J |
| CAN E | Chassis CAN | 5E |
| CAN L | Hybrid CAN | 14E |
| CAN L | Hybrid CAN | 19E |
| M1 | Starter | 2J |
| M3 | Fuel pump (FP) | 19H |
| N10/1 | Front SAM control unit with fuse and relay module | 2G |
| N10/1kM | Starter circuit 50 relay | 4J |
| N118 | Fuel pump control unit | 16H |
| N3/10 | ME-SFI [ME] control unit | 9E |
| N30/6 | Regenerative braking system control unit | 9J |
| N73 | Electronic ignition switch control unit | 2E |
| R4 | Spark plugs | 15B |
| T1/1 | Cylinder 1 ignition coil | 13B |
| T1/2 | Cylinder 2 ignition coil | 13B |
| T1/3 | Cylinder 3 ignition coil | 13B |
| T1/4 | Cylinder 4 ignition coil | 13B |
| T1/5 | Cylinder 5 ignition coil | 13C |
| T1/6 | Cylinder 6 ignition coil | 13C |
| Y3/8n4 | Fully integrated transmission control unit | 21J |
| Y76/1 | Cylinder 1 fuel injector | 6J |
| Y76/2 | Cylinder 2 fuel injector | 6J |
| Y76/3 | Cylinder 3 fuel injector | 6K |
| Y76/4 | Cylinder 4 fuel injector | 6K |
| Y76/5 | Cylinder 5 fuel injector | 6K |
| Y76/6 | Cylinder 6 fuel injector | 6K |
