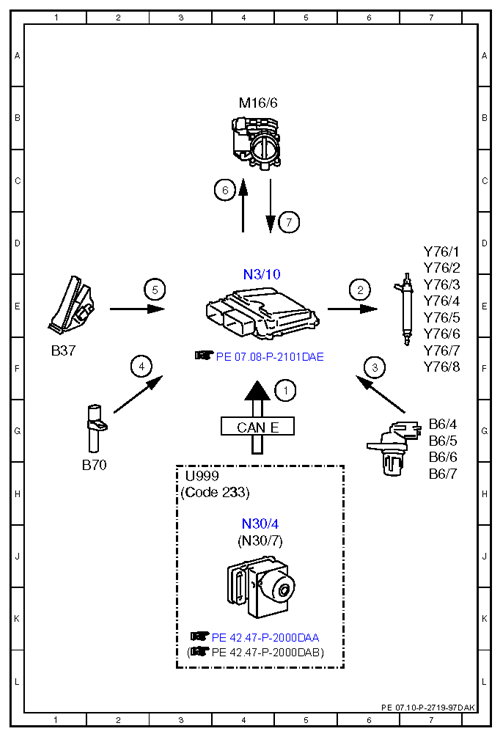

Electrical function schematic for engine limp-home mode - PE07.10-P-2719-97DAK
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157.9, 278.9 in MODEL 212 up to model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Service brake, status | 5F |
| 2 | Fuel injectors, actuation | 6E |
| 3 | Camshaft Hall sensor, signal | 6F |
| 4 | Engine speed, signal | 2F |
| 5 | Accelerator pedal sensor, signal | 3E |
| 6 | Throttle valve actuator, actuation | 4C |
| 7 | Throttle valve actuator, signal | 5D |
| B37 | Accelerator pedal sensor | 1F |
| B6/4 | Left intake camshaft Hall sensor | 7G |
| B6/5 | Right intake camshaft Hall sensor | 7G |
| B6/6 | Left exhaust camshaft Hall sensor | 7G |
| B6/7 | Right exhaust camshaft Hall sensor | 7H |
| B70 | Crankshaft Hall sensor | 1H |
| CAN E | Chassis CAN | 4G |
| Code 233 | DISTRONIC PLUS | 3H |
| M16/6 | Throttle valve actuator | 4B |
| N3/10 | ME-SFI [ME] control unit | 4E |
| N30/4 | Electronic Stability Program control unit | 4J |
| N30/7 | Premium Electronic Stability Program control unit | 4J |
| U999 | Not valid with DISTRONIC PLUS | 3H |
| Y76/1 | Cylinder 1 fuel injector | 7D |
| Y76/2 | Cylinder 2 fuel injector | 7D |
| Y76/3 | Cylinder 3 fuel injector | 7E |
| Y76/4 | Cylinder 4 fuel injector | 7E |
| Y76/5 | Cylinder 5 fuel injector | 7E |
| Y76/6 | Cylinder 6 fuel injector | 7F |
| Y76/7 | Cylinder 7 fuel injector | 7F |
| Y76/8 | Cylinder 8 fuel injector | 7F |
