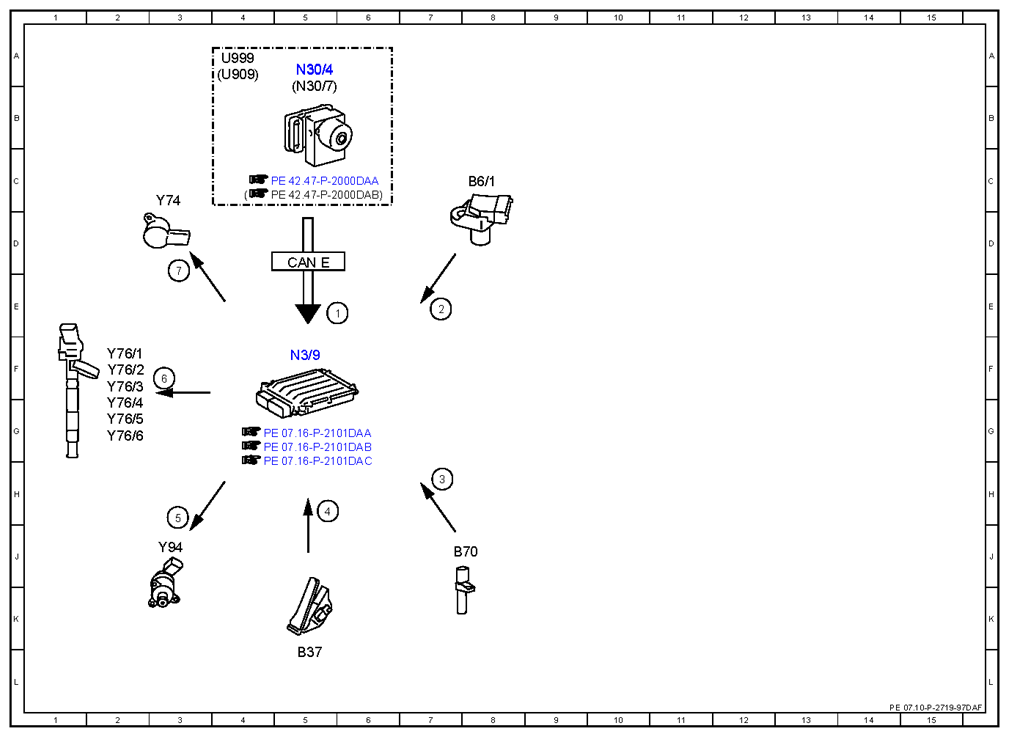

Electrical function schematic for engine limp-home mode - PE07.10-P-2719-97DAF
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642.8 in MODEL 212 up to model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Service brake, status | 5E |
| 2 | Camshaft Hall sensor, signal | 7E |
| 3 | Crankshaft Hall sensor, signal | 7H |
| 4 | Accelerator pedal sensor, signal | 5H |
| 5 | Quantity control valve, actuation | 3H |
| 6 | Fuel injectors, actuation | 3F |
| 7 | Pressure regulator valve, actuation | 3E |
| B37 | Accelerator pedal sensor | 5L |
| B6/1 | Camshaft Hall sensor | 8C |
| B70 | Crankshaft Hall sensor | 7J |
| CAN E | Chassis CAN | 5D |
| N3/9 | CDI control unit | 5F |
| N30/4 | Electronic Stability Program control unit | 5A |
| N30/7 | Premium Electronic Stability Program control unit | 5B |
| U909 | Valid for DISTRONIC PLUS | 4A |
| U999 | Not valid with DISTRONIC PLUS | 4A |
| Y74 | Pressure regulator valve | 3C |
| Y76/1 | Cylinder 1 fuel injector | 2F |
| Y76/2 | Cylinder 2 fuel injector | 2F |
| Y76/3 | Cylinder 3 fuel injector | 2F |
| Y76/4 | Cylinder 4 fuel injector | 2G |
| Y76/5 | Cylinder 5 fuel injector | 2G |
| Y76/6 | Cylinder 6 fuel injector | 2G |
| Y94 | Quantity control valve | 3J |
