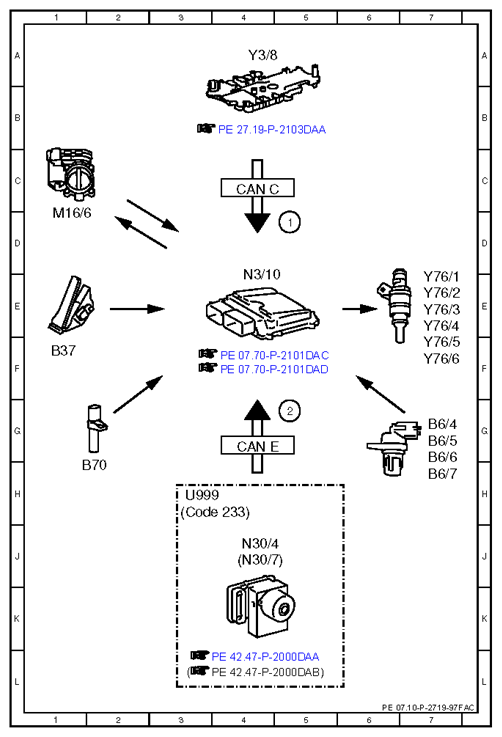

Electrical function schematic for engine limp-home mode - PE07.10-P-2719-97DAC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272.98 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Gear range, status | 5D |
| 2 | Service brake, status | 5G |
| B37 | Accelerator pedal sensor | 1F |
| B6/4 | Left intake camshaft Hall sensor | 7G |
| B6/5 | Right intake camshaft Hall sensor | 7G |
| B6/6 | Left exhaust camshaft Hall sensor | 7G |
| B6/7 | Right exhaust camshaft Hall sensor | 7H |
| B70 | Crankshaft Hall sensor | 1H |
| CAN C | Drive train CAN | 4C |
| CAN E | Chassis CAN | 4G |
| Code 233 | DISTRONIC PLUS | 3H |
| M16/6 | Throttle valve actuator | 1D |
| N3/10 | ME-SFI [ME] control unit | 4E |
| N30/4 | Electronic Stability Program control unit | 4J |
| N30/7 | Premium Electronic Stability Program control unit | 4J |
| U999 | Not valid with DISTRONIC PLUS | 3H |
| Y3/8 | Fully integrated transmission control unit | 4A |
| Y76/1 | Cylinder 1 fuel injector | 7E |
| Y76/2 | Cylinder 2 fuel injector | 7E |
| Y76/3 | Cylinder 3 fuel injector | 7E |
| Y76/4 | Cylinder 4 fuel injector | 7E |
| Y76/5 | Cylinder 5 fuel injector | 7F |
| Y76/6 | Cylinder 6 fuel injector | 7F |
