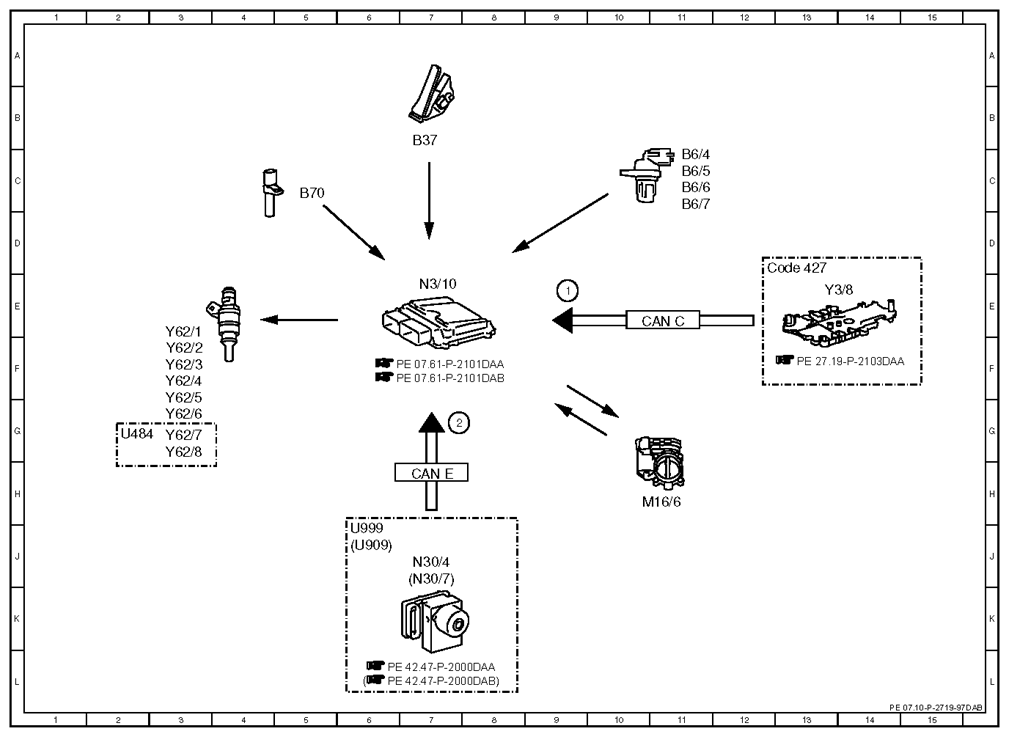

Electrical function schematic for engine limp-home mode - PE07.10-P-2719-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 212 except engine 272.98
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Gear range, status | 9E |
| 2 | Service brake, status | 7G |
| B37 | Accelerator pedal sensor | 7B |
| B6/4 | Left intake camshaft Hall sensor | 11C |
| B6/5 | Right intake camshaft Hall sensor | 11C |
| B6/6 | Left exhaust camshaft Hall sensor | 11C |
| B6/7 | Right exhaust camshaft Hall sensor | 11C |
| B70 | Crankshaft Hall sensor | 5C |
| CAN C | Drive train CAN | 11E |
| CAN E | Chassis CAN | 7H |
| Code 427 | 7-speed automatic transmission | 13D |
| M16/6 | Throttle valve actuator | 11H |
| N3/10 | ME-SFI [ME] control unit | 7E |
| N30/4 | Electronic Stability Program control unit | 7J |
| N30/7 | Premium Electronic Stability Program control unit | 7J |
| U484 | Valid for gasoline engine 273 | 2G |
| U909 | Valid for DISTRONIC PLUS | 6J |
| U999 | Not valid with DISTRONIC PLUS | 6J |
| Y3/8 | Fully integrated transmission control unit | 13E |
| Y62/1 | Cylinder 1 injection valve | 3E |
| Y62/2 | Cylinder 2 injection valve | 3F |
| Y62/3 | Cylinder 3 injection valve | 3F |
| Y62/4 | Cylinder 4 injection valve | 3F |
| Y62/5 | Cylinder 5 injection valve | 3G |
| Y62/6 | Cylinder 6 injection valve | 3G |
| Y62/7 | Cylinder 7 injection valve | 3G |
| Y62/8 | Cylinder 8 injection valve | 3G |
