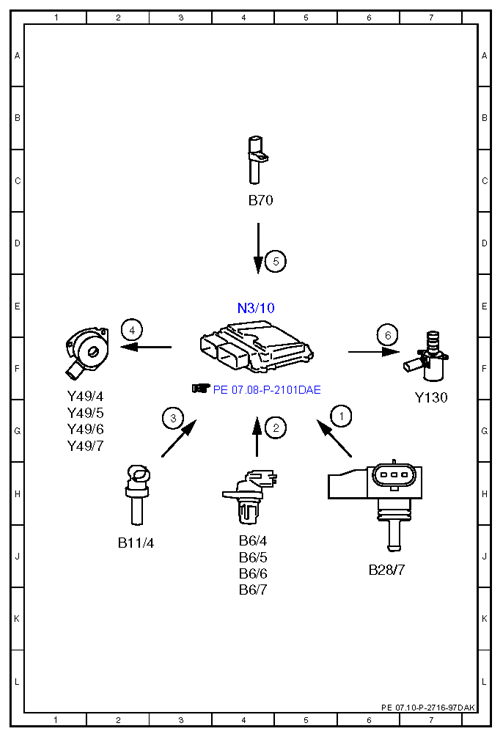

Electrical function schematic for camshaft adjustment - PE07.10-P-2716-97DAK
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 157, 278 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 6G |
| 2 | Camshaft Hall sensor, signal | 4G |
| 3 | Coolant temperature sensor, signal | 3G |
| 4 | Camshaft solenoids, actuation | 2E |
| 5 | Engine speed, signal | 4D |
| 6 | Engine oil pump valve, actuation | 6F |
| B11/4 | Coolant temperature sensor | 2J |
| B28/7 | Pressure sensor downstream of throttle valve | 6J |
| B6/4 | Left intake camshaft Hall sensor | 4J |
| B6/5 | Right intake camshaft Hall sensor | 4J |
| B6/6 | Left exhaust camshaft Hall sensor | 4J |
| B6/7 | Right exhaust camshaft Hall sensor | 4K |
| B70 | Crankshaft Hall sensor | 4C |
| N3/10 | ME-SFI [ME] control unit | 4E |
| Y130 | Engine oil pump valve | 7G |
| Y49/4 | Left intake camshaft solenoid | 1G |
| Y49/5 | Right intake camshaft solenoid | 1G |
| Y49/6 | Left exhaust camshaft solenoid | 1G |
| Y49/7 | Right exhaust camshaft solenoid | 1G |
