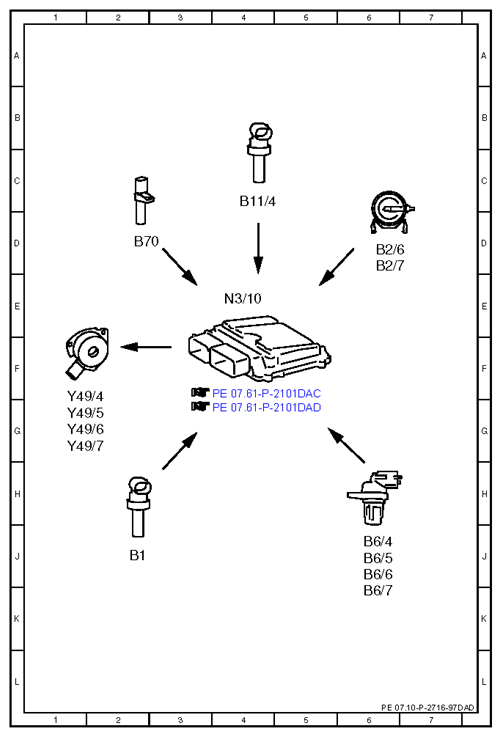

Electrical function schematic for camshaft adjustment - PE07.10-P-2716-97DAD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| B1 | Oil temperature sensor | 2J |
| B11/4 | Coolant temperature sensor | 4C |
| B2/6 | Left hot film MAF sensor | 6D |
| B2/7 | Right hot film MAF sensor | 6D |
| B6/4 | Left intake camshaft Hall sensor | 6J |
| B6/5 | Right intake camshaft Hall sensor | 6J |
| B6/6 | Left exhaust camshaft Hall sensor | 6J |
| B6/7 | Right exhaust camshaft Hall sensor | 6K |
| B70 | Crankshaft Hall sensor | 2D |
| N3/10 | ME-SFI [ME] control unit | 4E |
| Y49/4 | Left intake camshaft solenoid | 1G |
| Y49/5 | Right intake camshaft solenoid | 1G |
| Y49/6 | Left exhaust camshaft solenoid | 1G |
| Y49/7 | Right exhaust camshaft solenoid | 1G |
