Retrofit sports rear muffler - AZ49.10-P-0018EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 276 in MODEL 204.0 without CODE 494 (US version)

ENGINE 272, 276 in MODEL 212.0 up to 4/13/13 up to model year 2014 without CODE 494 (US version)

Shown: standard exhaust system for model 212

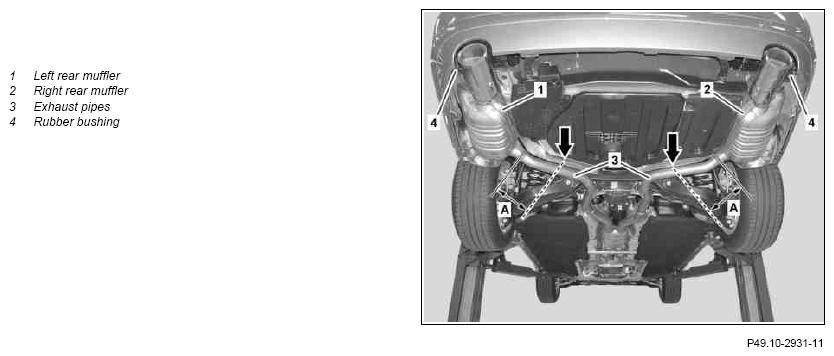

Fig 1: Retrofit Sports Rear Muffler Components - Shown On Model 212

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove
1	Raise vehicle
2	Measure connecting point at exhaust pipes (3) for the standard exhaust system and mark	Dimensions: a = 215 mm The connecting point (arrows) is established by the dimension (A). Measurement takes place from the center of the weld seam on the underside of the exhaust pipe.
3	Cut through exhaust pipes (3) for the series exhaust system	Deburr the cut edges. Specific tools gotis://G_58.3_06.2
4	Remove LH rear muffler (1) and RH rear muffler (2)
5	Check rubber mount (4) for re-usability	Replace the rubber mounts (4) if necessary.
	Install
6	Premount sport muffler on the series exhaust system	Use supplied clamps for this step. Apply lubricating paste to rubber mounts (4).
6	Premount sport muffler on the series exhaust system	Antifriction paste, rubber parts 2.5 kg, DB supply specification 6867.00	*BR00.45-Z-1002-06A
7	Align sport muffler and screw down	Ensure that the end pipes lie parallel to each other.
		MODEL 204	*BA49.10-P-1025-01AC
		MODEL 212	*BA49.10-P-1033-01AE
8	Check entire exhaust system for leaktightness.
9	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "Sport muffler retrofitted as per AZ49.10-P-0018EW " under field organization texts to the DG 49.
10	Hand over supplied EC type approval to the customer	Acceptance testing by an authorized test point is not required. The EC type approval supplied for the sport rear muffler should be carried in the vehicle.

EXHAUST SYSTEM

Number	Designation		ENGINE 156, 271, 272 in MODEL 204	ENGINE 276 in MODEL 204
BA49.10-P-1025-01AC	Nut, center muffler clamp to rear muffler	Nm	35	35

EXHAUST SYSTEM

Number	Designation		ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212
BA49.10-P-1033-01AE	Bolt/nut, clamp securing center muffler/SCR catalytic converter to rear muffler	Nm	35

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Antifriction paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (siehe EPC)	Sport muffler	2
