Remove/install temperature sensor - AR07.04-P-0070GZB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164, 166, 207, 212, 218, 222, 251 Charge air temperature sensor

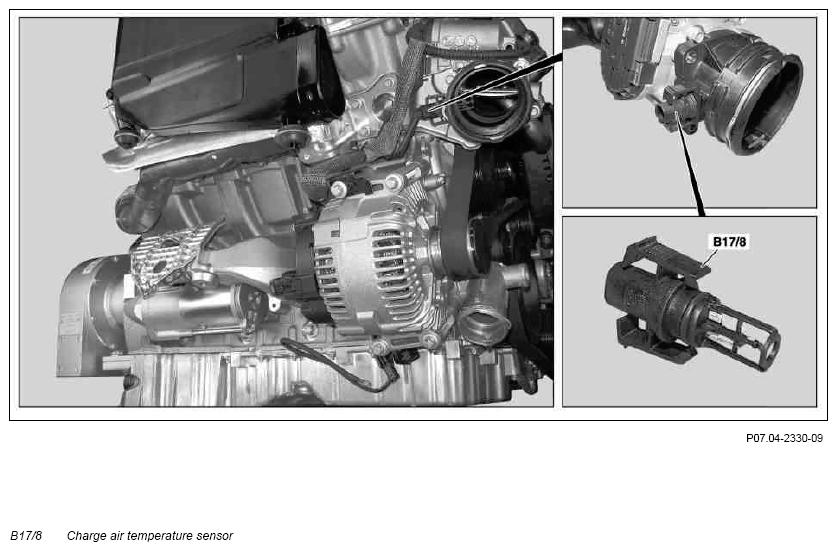

Shown on model 166.024
| Remove/install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| 1.1 | Removes strut tower brace | Model 164.8 | |
| AR62.30-P-2500GY | |||
| 1.2 | Remove partition wall between wheel wells | MODEL 251 | AR62.30-P-2400RT |
| 2 | Remove engine cover | MODEL 164, 166, 207, 212, 218, 222, 251 MODEL 251 |
AR01.10-P-2405RTB |
| MODEL 164 | AR01.10-P-2405GZB | ||
| 3 | Remove engine air intake duct upstream of right air filter housing | ||
| 4 | Disconnect electrical connection at charge air temperature sensor (B17/8) | ||
| 5 | Release charge air temperature sensor (B17/8) and pull out of the engine charge air duct housing downstream of the charge air cooler | ||
| 6 | Install in the reverse order | ||
| 7 | Connect Star Diagnosis, read out fault memory and clear if necessary | ||
| Model 222 | AD00.00-P-2000-04B | ||
| MODEL 164, 166, 207, 212, 218, 251 | AD00.00-P-2000-04A | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out engine test run |
