Remove/install radiator identification sensor - AR07.04-P-5004GZH

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272

Shown on cooler in model 164

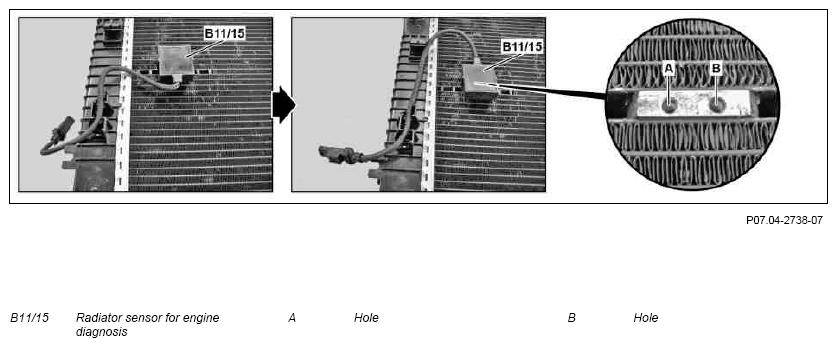

Fig 1: Radiator Identification Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Picture no., etc.	Work notes
B11/15	Radiator sensor for engine diagnosis	Only perform work on removed cooler. Damage is avoided in this way. The radiator sensor for engine diagnosis (B11/15) may only be replaced once per radiator. If the radiator sensor for engine diagnosis (B11/15) has to be replaced twice, the cooler must also be replaced.
A	Hole	The lug on the rear side breaks during removal and remains in bore (A).
B	Hole	Pay attention to installation position. Glue lug into bore (B).
B	Hole	Thread locking adhesive, Loctite 4204	*BR00.45-Z-1146-02A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1146-02A	Thread locking adhesive, Loctite 4204	A 009 989 09 71
