Remove/install pressure transducer for boost pressure control - AR07.17-P-7002ELB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 157, 278 in MODEL 212, 218
ENGINES 278 in MODEL 207
Shown on model 218.373

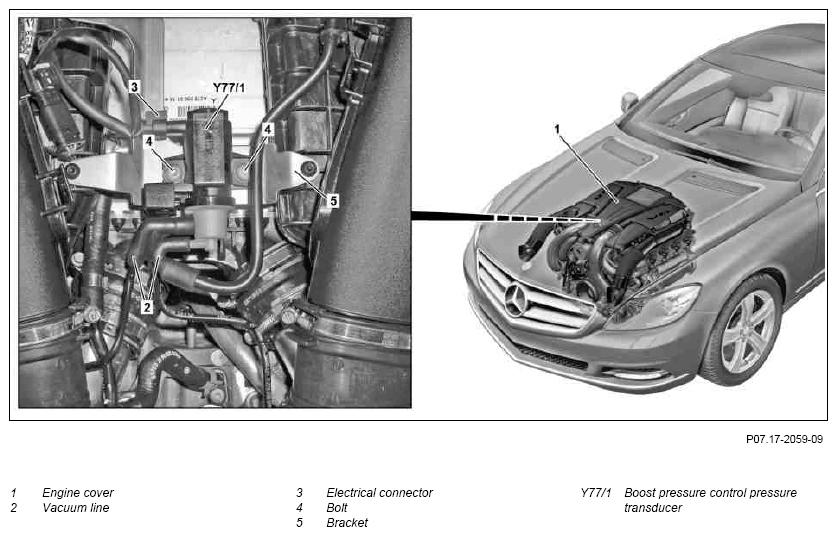

Fig 1: Pressure Transducer For Boost Pressure Control Remove/Install Components - Shown On Model 218.373
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| 1 | Open engine hood | ||
| 2 | Remove center section of the upper engine cover (1) | ||
| 3 | Detach vacuum lines (2) from boost pressure control pressure transducer (Y77/1) | ||
| 4 | Disconnect electrical connector (3) from boost pressure control pressure transducer (Y77/1) and set aside | ||
| 5 | Remove bolts (4) and boost pressure control pressure transducer (Y77/1) from bracket (5) on intake manifold | *BA09.41-P-1009-01O | |
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory with STAR DIAGNOSIS and erase if necessary | AD00.00-P-2000-04A |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | ENGINE 157 | ENGINE 278 | |
|---|---|---|---|---|
| BA09.41-P-1009-01O | Bolt, pressure transducer to bracket | Nm | 7 | 7 |
