Remove/install intake air temperature sensor - AR07.52-P-1465SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 207, 212, 218, 221

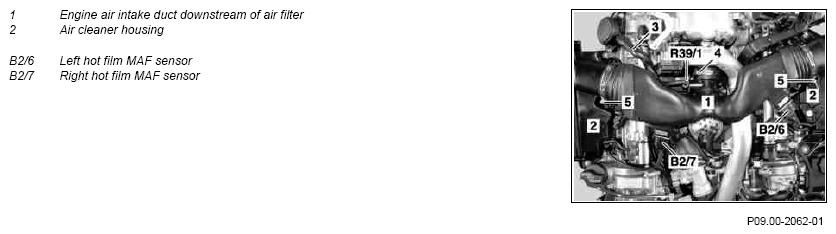

Fig 1: Intake Air Temperature Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove engine cover	Ensure correct seating of the engine cover. Model 207, 212, 218
1	Remove engine cover	Model 221	AR01.10-P-2405SXI
2	Remove air filter housing (2) on the right hand side	Model 221	AR09.10-P-1150SXI
3	Remove engine air intake duct downstream of the air filter (1)	Model 207, 212, 218	AR09.10-P-8130OGE
3		Model 221 The intake air temperature sensors are located in the hot film MAF sensor, left (B2/6) and the hot film MAF sensor, right (B2/7). The hot film MAF sensor, left (B2/6) and the hot film MAF sensor, right (B2/7) must be completely replaced in the event of a defect, along with the engine intake air duct downstream of the air filter (1).	AR09.10-P-8130SXI
4	Install in the reverse order
5	Read out and erase fault memory using STAR DIAGNOSIS	Stored faults which may be caused by assembly work, test work, removed lines or a simulation, must be processed and erased in fault memories after completing the work.	AD00.00-P-2000-04A
