Remove/install hot film mass air flow sensor - AR07.07-P-1453CMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 204, 212
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |

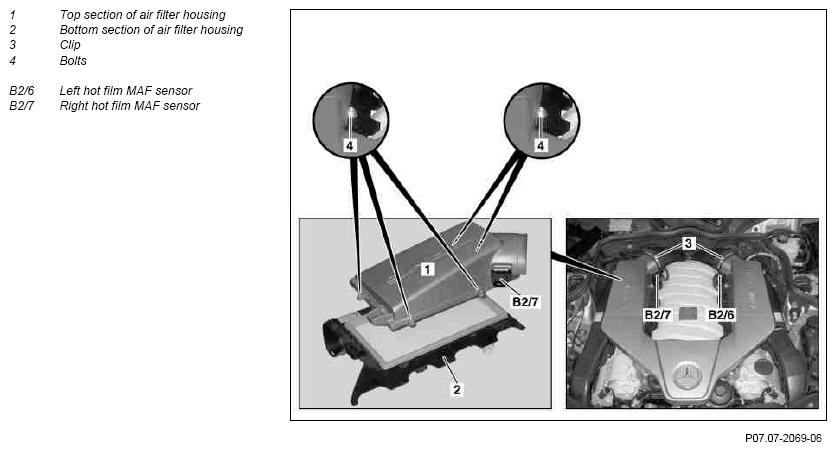

| 1 | Remove front engine cover | ||
| 2 | Remove cover from right hot film mass air flow sensor (B2/6) or left hot film mass air flow sensor (B2/7) in the upward direction | ||
| 3 | Open each clamp (3) | ||
| 4 | Remove right air filter housing or left air filter housing | AR09.10-P-1150CMG | |
| 5 | Remove bolts (4) | ||
| 6 | Disconnect top section of air filter housing (1) from bottom section of air filter housing (2) | ||
| 7 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Carry out engine test run |
