Remove/install exhaust gas temperature probe - AR07.04-P-0071CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221

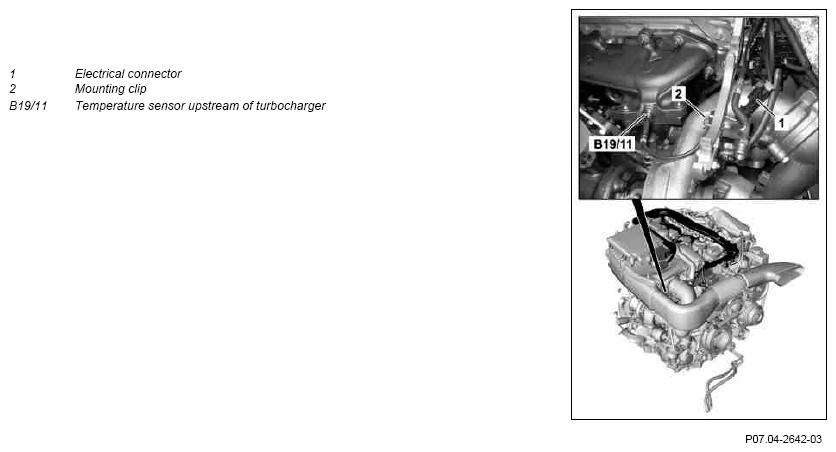

Shown on model 204

Fig 1: Exhaust Gas Temperature Probe Remove/Install Components - Shown On Model 204

Courtesy of MERCEDES-BENZ USA

Shown on model 166

Fig 2: Exhaust Gas Temperature Probe Remove/Install Components - Shown On Model 166

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove cylinder head cover trim
2	Remove air filter housing		AR09.10-P-1150CD
3	Detach coolant pump switchover valve (Y133) on bracket (5) and lay down below	ENGINE 651 in MODEL 166, 172	AR20.10-P-3000GQ
4	Detach coolant pump switchover valve (B5/4) and place to one side	ENGINE 651 in MODEL 166, 172
5	Disconnect electrical connector (1)	ENGINE 651 in MODEL 204, 207, 212, 221
6	Unclip fastening clip (2) on air filter housing holder
7	Remove electrical connection (4) from bracket (3) and disconnect	ENGINE 651 in MODEL 166, 172
8	Remove temperature sensor upstream of turbocharger (B19/11)	Coat thread of the temperature sensor upstream of diesel particulate filter (B19/11) with heat-resistant lubricant.
		Exhaust temperature sensor in manifold	*BA15.60-P-1002-01D
		Paste, hot lubrication 1 kg, DB supply specification 6879.20	*BR00.45-Z-1005-06A
9	Install in the reverse order
10	Connect STAR DIAGNOSIS, read out DTC memory and erase if required
	Stored faults which may be caused by assembly work, test work, removed lines or a simulation, must be processed and erased in fault memories after completing the work.		AD00.00-P-2000-04A
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
11	Carry out an engine test run and test exhaust system for leaktightness

TEMPERATURE SENSOR

Number	Designation		ENGINE 651
BA15.60-P-1002-01D	Exhaust temperature sensor in manifold	Nm	45

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DB supply specification 6879.20	A 000 989 76 51
