Remove/install exhaust back pressure sensor - AR07.04-P-0007CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651 in MODEL 166, 172, 204, 205, 207, 212, 218, 221, 222

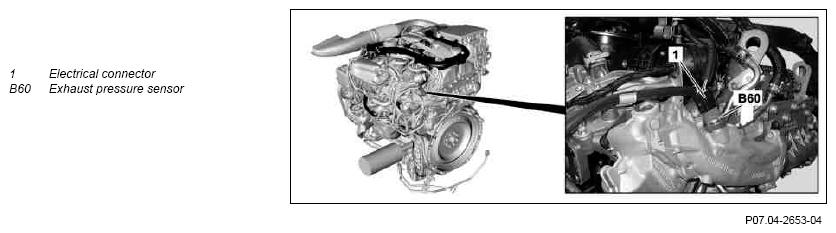

Shown on model 204 with engine 651
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Remove/install | |||
| 1 | Remove engine cover | ENGINE 651 in MODEL 166, 172, 204, 205, 207, 212, 218, 221, 222 | |
| ENGINE 651 in MODEL 204, 207 | AR01.20-P-5014-02CD | ||
| 2 | Disconnect electrical connection (1) | ||
| 3 | Remove exhaust pressure sensor (B60) | ||
| *BA14.20-P-1004-01K | |||
| 4 | Install in the reverse order | ||
| 5 | Connect diagnostic system, read out fault memory and delete if necessary | ||
| MODEL 205, 222 | AD00.00-P-2000-04B | ||
| MODEL 166, 172, 204, 207, 212, 218, 221 | AD00.00-P-2000-04A |
EXHAUST GAS RECIRCULATION
| Number | Designation | ENGINE 651 | |
|---|---|---|---|
| BA14.20-P-1004-01K | Exhaust gas recirculation pressure sensor | Nm | 25 |
