Remove/install coolant temperature sensor - AR07.04-P-1620CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 651 in MODELS 204, 207, 212, 218, 221
| Remove/install | |||
| Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| 1 | Drain coolant | Model 204, 207 | AR20.00-P-1142CW |
| Model 212, 218, 221 | AR20.00-P-1142OMA | ||
| 2 | Remove cylinder head cover trim | ||

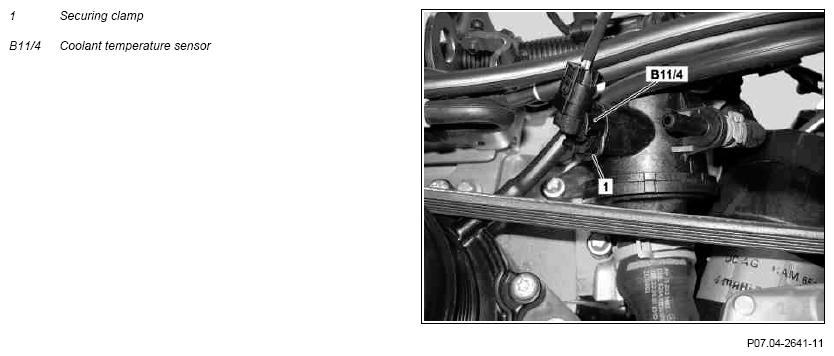

| 3 | Disconnect electrical connector on coolant temperature sensor (B11/4) | ||
| 4 | Pull out securing clamp (1) | ||
| 5 | Remove coolant temperature sensor (B11/4) | ||
| 6 | Install in the reverse order | ||
| Checking | |||
| 7 | Inspect cooling system for leaks | Model 204, 207 | AR20.00-P-1010CW |
| Model 212, 218 | AR20.00-P-1010OMA | ||
| Model 221 | AR20.00-P-1010SX |
