Remove/install combustion chamber pressure sensor - AR07.04-P-0065CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 207, 212, 218
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| AH00.00-P-5000-01A | |||
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Remove engine cover | ||
| 3 | Remove engine air intake duct downstream of air filter | AR09.10-P-8130OGE | |
| 4 | Remove left or right air filter housing | AR09.10-P-1150SXI | |
| 5 | Remove left or right sound dampener on cylinder head cover | ||

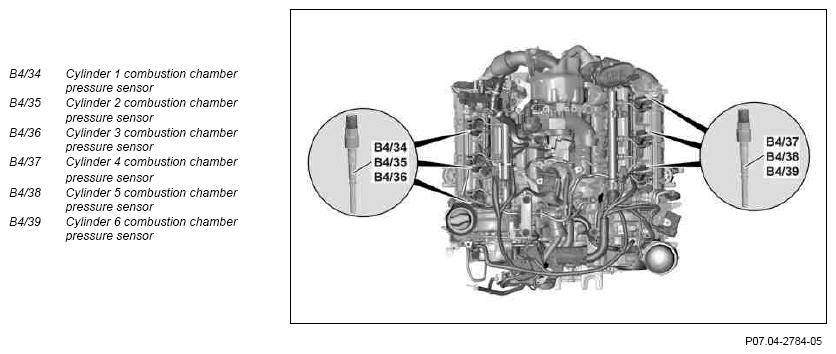

| 6 | Replace the respective combustion chamber sensor (B4/34, B4/35, B4/36, B4/37, B4/38, B4/39) | ENGINE 642 in MODEL 207, 212, 218 with CODE 927 (Emission control system with Euro 6 technology) | |
| AR07.04-P-0065-01LFD | |||
Orderly installation is not guaranteed otherwise. |
|||
| *BA07.04-P-1018-01G | |||
| 7 | Connect diagnostic system, read out fault memory and delete if necessary | ||
| AD00.00-P-2000-04A | |||
| 8 | Install in the reverse order |
SENSORS, TRANSMITTERS
| Number | Designation | ENGINE 642 | ||
|---|---|---|---|---|
| BA07.04-P-1018-01G | Combustion chamber pressure sensor on cylinder head | Stage 1 | Nm | 5 |
| Stage 2 | ∠° | 90 | ||
