Remove/install charge air temperature sensor - AR07.52-P-1466ELB

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 157, 278 in MODEL 212, 218

ENGINES 278 in MODEL 207

Illustrated on model 218.373

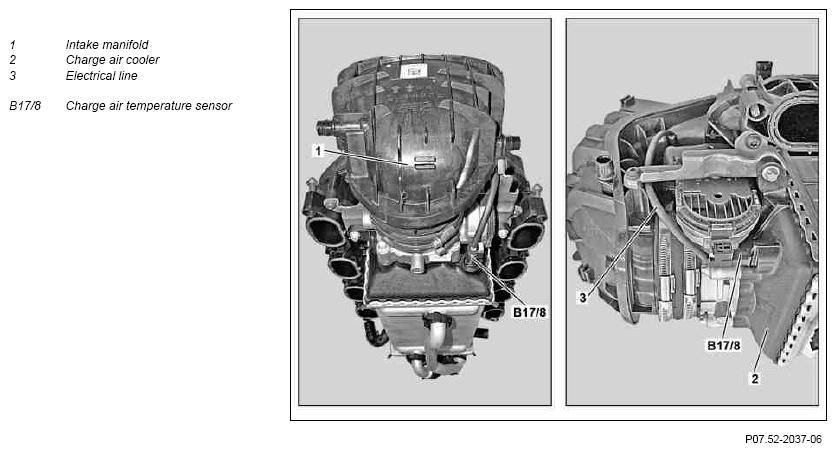

Fig 1: Charge Air Temperature Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove intake manifold (1)		AR09.20-P-1310ELB
2	Disconnect electrical line (3) from charge air temperature sensor (B17/8)
3	Remove charge air temperature sensor (B17/8)	Check for correct seating of sealing ring between charge air temperature sensor (B17/8) and charge air cooler (2).
4	Install in the reverse order
