Remove/install a pressure sensor - AR07.04-P-0060SXI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642.8 in MODEL 166, 204, 212, 221, 222, 251

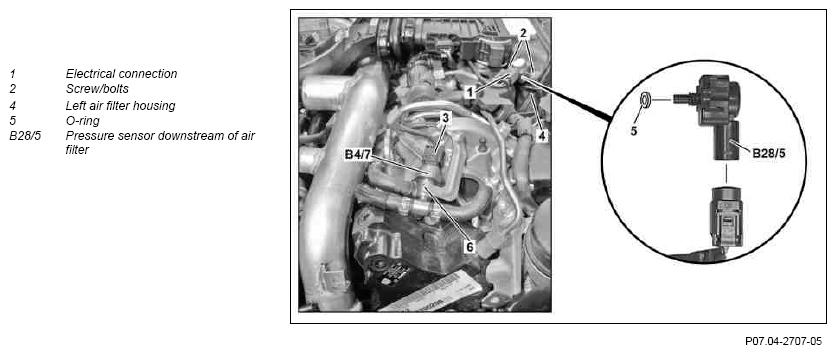

Shown on engine 642.852 in model 212.026
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Remove engine cover | ENGINE 642.8 in MODEL 166, 204, 212, 221, 222, 251 ENGINE 642.8 in MODEL 221 |
AR01.10-P-2405SXI |
| ENGINE 642.8 in MODEL 251 | AR01.10-P-2405RTB | ||
| 3 | Unlock and disconnect Electrical connection (1) at pressure sensor (B28/5) | ||
| 4 | Remove screw/bolts (2) on pressure sensor (B28/5) | ||
| 5 | Remove pressure sensor (B28/5) from the left air filter housing (4) | ||
| Antifriction paste, rubber parts 2.5 kg, DB supply specification 6867.00 | *BR00.45-Z-1002-06A | ||
| 6 | Install in the reverse order | ||
| 7 | Connect Star Diagnosis, read out fault memory and clear if necessary | ||
| MODEL 222 with ENGINE 642.8 | AD00.00-P-2000-04B | ||
| MODEL 166, 204, 212, 221, 251 with ENGINE 642.8 | AD00.00-P-2000-04A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1002-06A | Antifriction paste, rubber parts 2.5 kg, DB supply specification 6867.00 | A 000 989 01 60 |
