Remove jammed fuel injectors - AR07.16-P-1000-03CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651

Fig 1: Identifying Impact Extractor (602 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction Claw (651 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Push extraction claw (1) onto the respective injector (Y76) all the way.
Ensure correct positioning of the extraction claw (1) on the respective injector (Y76).
Turn impact extractor on extraction claw and knock out injector (Y76).

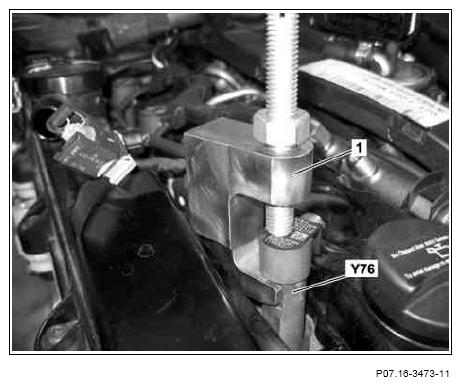

Fig 3: Removing Jammed Fuel Injectors
Courtesy of MERCEDES-BENZ USA
