Mount high-pressure lines - AR07.03-P-1010-02MMB

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 157, 278

INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation ENGINE 157 ENGINE 278
BA07.03-P-1002-01E Union nut, fuel line to high-pressure pump Nm 22 22
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation ENGINE 157 ENGINE 278
BA07.03-P-1004-01E Bolt, right bracket for fuel line clamp to high pressure pump drive housing/cylinder head Nm 14 14
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation ENGINE 157 ENGINE 278
BA07.03-P-1001-01E Union nut, fuel line to fuel distributor Nm 22 22
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation ENGINE 157 ENGINE 278
BA07.03-P-1008-01E Fuel line union nut on service valve Nm 24 24
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation ENGINE 157 ENGINE 278
BA07.03-P-1005-01E Bolt, left bracket for high pressure line clamp to cylinder head cover/cylinder crankcase Nm 9 9
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation ENGINE 157 ENGINE 278
BA07.03-P-1006-01E Bolt, fuel line clamp to charge air distribution line Nm 5 5
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation ENGINE 157 ENGINE 278
BA07.03-P-1003-01E Bolt, fuel line service valve to cylinder head cover Nm 9 9

NOTES The union nuts for the low-pressure line (1a) and the high-pressure lines (1b, 1c, 1d) may only be tightened with torque after  installation of the low-pressure line (1a) and the high-pressure lines (1b, 1c, 1d).

Leakage will occur otherwise. Do not kink or bend the low-pressure line (1a) and high-pressure line (1b, 1c, 1d).

  1. Mount low-pressure line (1a) loosely on high-pressure pumps (2l, 2r) and on the left cylinder head cover.

    IMPORTANT Tighten screw/bolts (7) after alignment of the low-pressure line (1a) and tighten the high-pressure lines (1b, 1c, 1d) using torque.

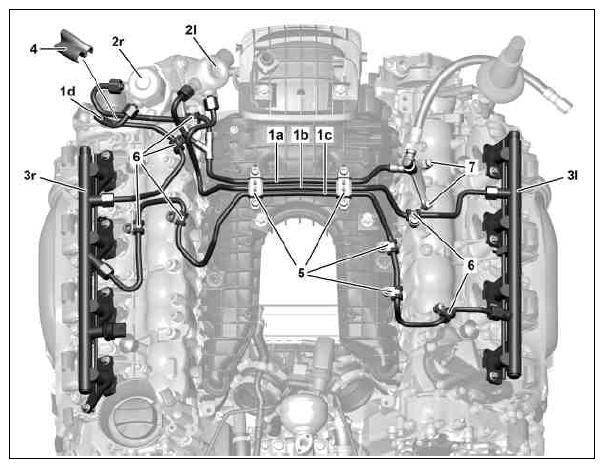

    Fig 1: Mounting Low-Pressure Line Loosely On High-Pressure Pumps
    G10240869Courtesy of MERCEDES-BENZ USA
  2. Mount high-pressure line (1b) on left rail (3l) and on left high-pressure pump (2l).
  3. Mount high-pressure line (1c) on left and right rail (3l, 3r).
  4. Mount high-pressure line (1b) on right rail (3r) and on right high-pressure pump (2lr).

    IMPORTANT Clamps (5, 6) must be aligned before screwing on. Ensure correct routing of the low-pressure line (1a) and the high-pressure lines (1b, 1c, 1d).

  5. Mount clamps (5) for the low-pressure line (1a) and the high-pressure lines (1b, 1c) on the intake manifold.
  6. Mount clamps (6) for the low-pressure line (1a) and the high-pressure lines (1b, 1c, 1d) on cylinder head covers.
  7. Mount union nut of the fuel line on fuel distributor for low-pressure line (1a).
  8. Tighten union nuts with torque.

    NOTES Comply with the tightening torques exactly. Leaks can occur otherwise.

  9. Mount plastic retaining clip (4) between the low-pressure line (1a) and high-pressure line (1d).
