Mount high-pressure lines - AR07.03-P-1010-02MMA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276
INJECTORS, INJECTION VALVES, LINES
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA07.03-P-1001-01D | Union nut, fuel line to fuel distributor | Nm | 22 |
| BA07.03-P-1002-01D | Union nut, fuel line to high-pressure pump | Nm | 22 |
| BA07.03-P-1003-01D | Bolt, fuel line service valve to cylinder head cover | Nm | 9 |
| BA07.03-P-1005-01D | Clamp bolt for fuel line | Nm | 9 |
| BA07.03-P-1008-01D | Fuel line union nut on service valve | Nm | 24 |
The union nuts for the low-pressure line (1a) and the high-pressure line (1b) may only be tightened with torque after
installation of the low-pressure line (1a) and the high-pressure lines (1b) otherwise leakage will occur. Do not kink or bend low-pressure line (1a) and high-pressure line (1b).

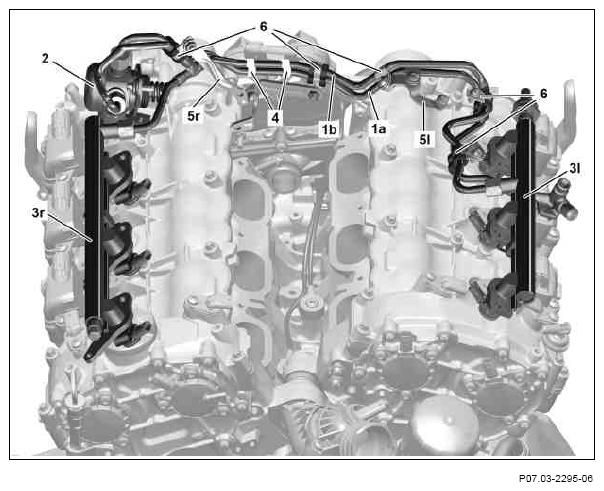

- Mount low pressure line (1a) on high-pressure pump (2) and on the left cylinder head cover.
- Mount high-pressure line (1b) on rail (3l, 3r) and on high-pressure pump (2l).
Clamps (6) must be aligned before screwing on. Pay attention to correct routing of the low-pressure line (1a) and the high-pressure line (1b).
- Mount clamps (6) for the low-pressure line (1a) and the high-pressure lines (1b) on the bracket on the cylinder head covers.
- Tighten union nuts with torque.
Observe tightening torques exactly otherwise leaks can occur.
- Mount plastic retaining clips (4) between the low-pressure line (1a) and high-pressure line (1d).
