Check high-pressure lines - AR07.03-P-1010-03MM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 133, 152.9, 157, 176, 178, 270, 271.8, 274, 276, 278
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
Damaged high-pressure lines must not
be installed again.
Leaks on the fuel system and environmental damage can occur otherwise.

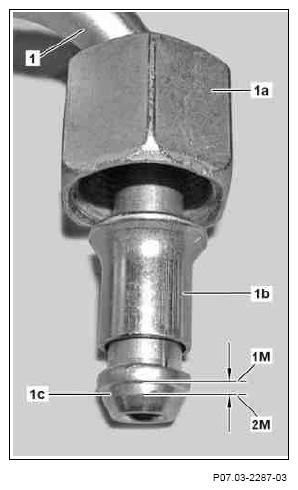

- Tighten union nut (1a) and thrust piece (1b) on the high-pressure line (1) to the rear.
- Clean sealing cone (1c) for high-pressure line (1).
- Check not deformed area of the sealing cone (1c) using a feeler gauge.
The not deformed area arises from the distance from the first measuring point (1M) to the second point (2M).
If the not deformed area is not at least 1 mm
↓
Replace high-pressure line (1).
