Remove/install tailgate liner - AR72.20-P-3520ES
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.2
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||

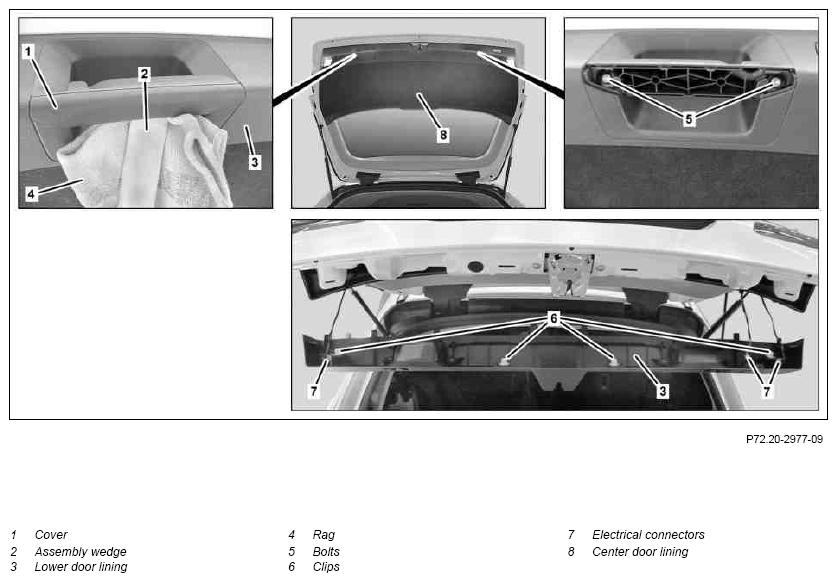

| 1 | Unclip covers (1) at front from lower door lining (3) using assembly wedge (2). | Otherwise the covers (1) and the lower door lining (3) can be damaged. |
|
| Figure | |||
| 2 | Remove bolts (5) | ||
| 3 | Unclip bottom door lining (3) from clips (6) and remove until electrical connectors (7) are accessible | ||
| 4 | Disconnect electrical connectors (7) | ||
| 5 | Loosen center door lining (8) from window frame on rear-end door (9) with assembly wedge (2) | ||
| Figure | |||
| 6 | Unclip clips (10) from center door lining (8) on rear-end door (9) | Figure | |
| 7 | Unhook center door lining (8) from shackles (11) | ||
| 8 | Install in the reverse order |
