Remove/install switches for rear door power windows - AR72.29-P-0002NKB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 117, 156, 166, 176, 212 as of 3/1/11, 218, 242, 246

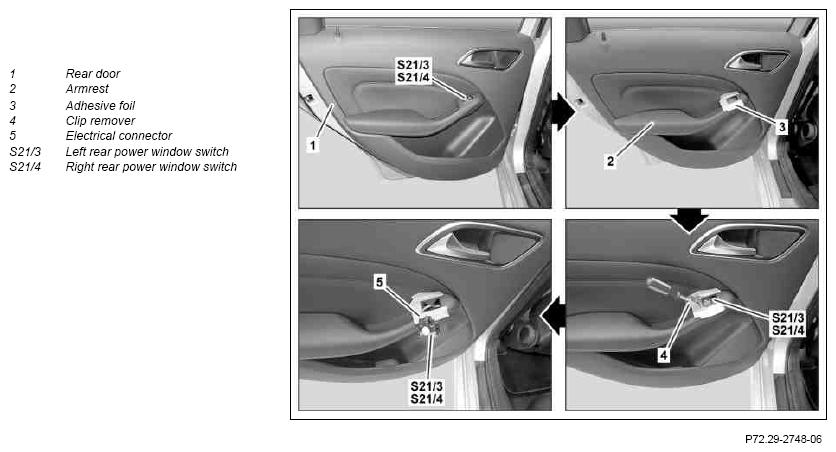

Shown on MODEL 246
| Remove | |||
| 1 | Attach adhesive foil (3) to armrest (2) on rear door (1) | ||
| 2 | Unclip left rear power window switch (S21/3) or right rear power window switch (S21/4) with clip remover (4) | Fig 2 | |
| 3 | Remove left rear power window switch (S21/3) or right rear power window switch (S21/4) from armrest (2) until electrical connector (5) is accessible | ||
| 4 | Disconnect electrical connector (5) and remove left rear power window switch (S21/3) or right rear power window switch (S21/4) | ||
| 5 | Remove adhesive foil (3) | ||
| Install | |||
| 6 | Connect electrical connector (5) on left rear power window switch (S21/3) or right rear power window switch (S21/4) | ||
| 7 | Press left rear power window switch (S21/3) or right rear power window switch (S21/4) into armrest (2) | ||
| 8 | Check power window for proper function |
