Remove/install sealing strip on door bottom edge - AR72.12-P-1019CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/9, 212

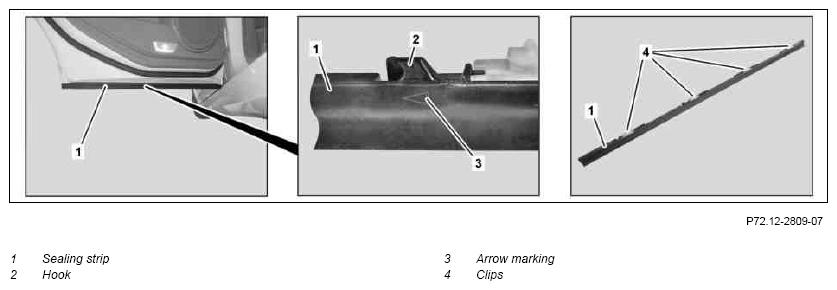

Shown on model 204.0
| Removing | |||
| 1 | Press down sealing strip (1) on hook (2) above arrow marking (3) and disengage hook (2). | Fig 2 | |
| 2 | Pull sealing strip (1) toward rear and remove downward | ||
| Install | |||
| 3 | Position sealing strip (1) at door bottom edge and slide toward front until all clips (4) on door bottom edge are arrested |
