Remove/install front door power window switch group - AR72.29-P-0110NKB

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117, 156, 166, 176, 204.3, 212 as of 3/1/11, 218, 231, 242, 246

Shown on MODEL 246

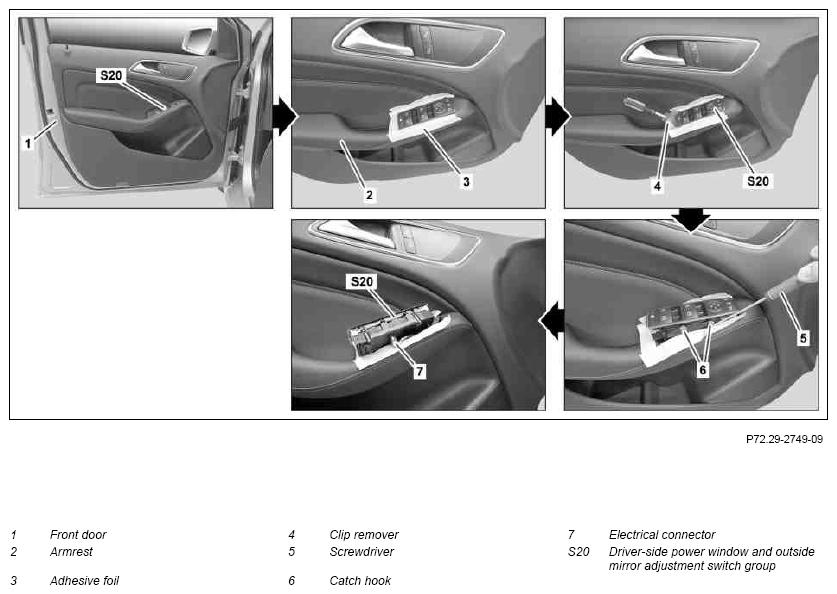

Fig 1: Front Door Power Window Switch Remove/Install Components - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

	Remove
1	Attach adhesive foil (3) to armrest (2) on front door (1)	Directly attach adhesive foil (3) on driver-side outside mirror adjustment power window switch group (S20).
2	Unclip driver-side outside mirror adjustment power window switch group (S20) with clip remover (4)	Clip remover	Figure
3	Remove driver-side outside mirror adjustment power window switch group (S20) from armrest (2) until electrical connector (7) is accessible	For this purpose unlock catch hooks (6) on driver-side outside mirror adjustment power window switch group (S20) with suitable screwdriver (5).
4	Disconnect electrical connector (7) and remove driver-side outside mirror adjustment power window switch group (S20)
5	Remove adhesive foil (3)
	Install
6	Connect electrical connector (7) on driver-side outside mirror adjustment power window switch group (S20)
7	Clip driver-side outside mirror adjustment power window switch group (S20) into armrest (2)	The driver-side outside mirror adjustment power window switch group (S20) should arrest perceptively in the armrest (2).
8	Check adjustments for proper function

Fig 2: Identifying Clip Remover (000 589 90 63 00)

Courtesy of MERCEDES-BENZ USA
