Inspecting cylinders with a light probe - AR01.00-P-0200SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 207, 212, 221, 218

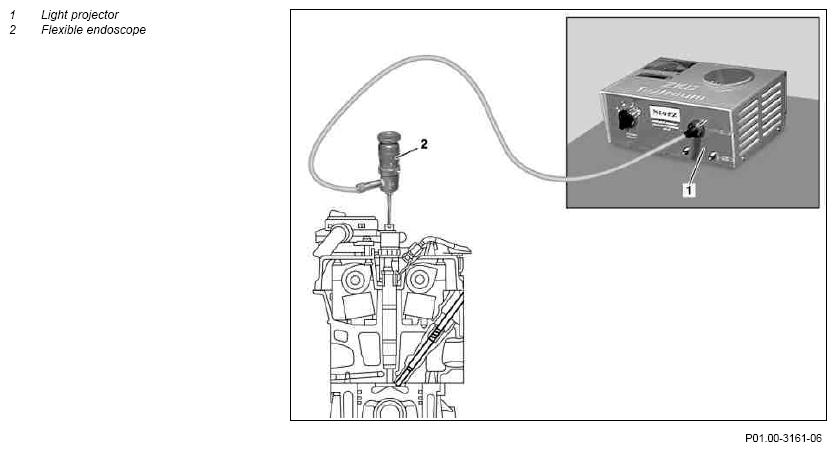

Fig 1: Inspecting Cylinders With Light Probe

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove transmitter key	To prevent any inadvertent actuation of the starter.
2	Remove fuel injectors		AR07.16-P-1000SXI
3	Move piston in cylinder to be checked to bottom dead center (BDC)	Crank engine at crankshaft. Do not rotate engine backwards.
3		Socket wrench bit	Figure
4	Inspect cylinders with a light probe	Connect light projector (1) and pass flexible endoscope (2) for the light projector (1) through the bore for the fuel injectors into the cylinder. Endoscope (cold light)
	Checking
5	Inspect cylinder walls	If there is wear to the cylinder, the cylinder wall has become rough and the honing marks are no longer visible. The cylinder head must be removed, see: ↓ Remove/install cylinder head
		Model 207, 212, 218	AR01.30-P-5800OGE
		Model 221	AR01.30-P-5800SXI
	General information on inspecting cylinder walls	Model 221	AH01.00-P-0300-01A
6	Install in the reverse order
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
7	Check fuel system for leaks with engine running		AS00.00-Z-0005-01A

Fig 2: Identifying Wrench Socket (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA
