Disconnect engine wiring harness - AR01.00-P-2410-02EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 276.9 in MODEL 212, 218

HOUSING

Number Designation TRANSMISSION 722.9
BA27.40-P-1014-01A Bolt, heat shield to transmission housing Nm 9
ALTERNATOR

Number Designation ENGINE 276
BA15.40-P-1002-01F Nut, circuit B+ to alternator Nm 15
HOUSING

Number Designation TRANSMISSION 722.9
BA27.40-P-1013-01A Bolt, ground line to transmission housing Nm 9

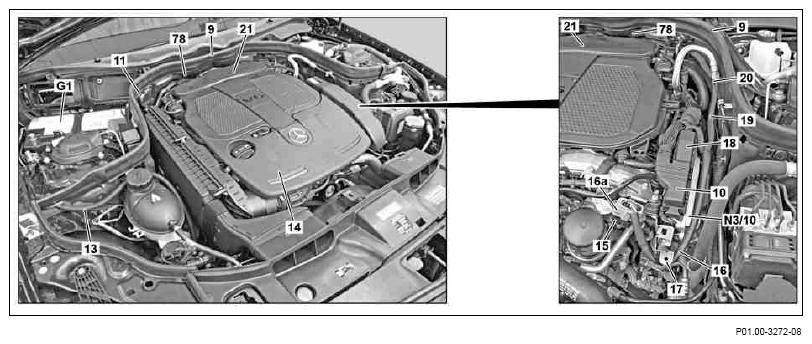

Fig 1: Engine Compartment Components
G10240472Courtesy of MERCEDES-BENZ USA
  1. Remove air duct (2); unclip tension springs (1) to do this.
  2. Detach ground line (3) from on-board electrical system battery (G1) and place to one side.

    IMPORTANT Insulate connecting point for ground line (3) to avoid unintended contact of detached ground line (3) with the on-board electrical system battery (G1) ground point.

    Only perform operation steps 3 to   22  for removal of the engine.

  3. Detach cap (4) for positive battery terminal (5) from on-board electrical system battery (G1).
  4. Detach protective cap (6a) from positive line (6).

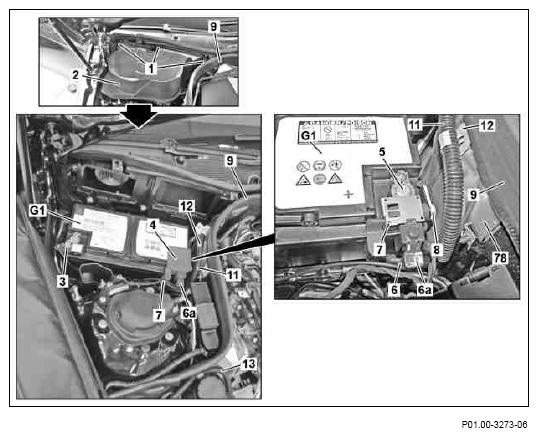

    Fig 2: Detaching Cap For Positive Battery Terminal From On-Board Electrical System Battery
    G10240473Courtesy of MERCEDES-BENZ USA
  5. Detach positive line (6) from positive terminal clamp (7).
  6. Detach positive terminal clamp (7) from positive battery terminal (5) at the on-board electrical system battery (G1).
  7. Detach electrical connection (8) from positive terminal clamp (7).
  8. Detach weatherstrip (9) from suspension strut tower and center section of the bulkhead (78) and remove.
  9. Unclip electrical line (11) from retaining clamp (12).
  10. Unclip electrical line (11) from center section of the bulkhead (78).
  11. Unclip bracket for the electrical line (11) on center section of the bulkhead (78) and lay aside electrical line (11) on the engine.
  12. Detach electrical line (13) from alternator TORQUE SPECIFICATION .
  13. Remove upper engine cover (14).
  14. Detach electrical connection (16a) from cylinder head cover and disconnect from connector (15).
  15. Detach electrical line (16) from bracket (17) for the ME-SFI [ME] control unit (N3/10).
  16. Disconnect electrical connections (10, 18) on ME-SFI control unit (N3/10).
  17. Detach retaining clamp (20) from suspension strut tower and set electrical wiring harness (19) aside.
  18. Disconnect electrical line (22) from intelligent servo module for DIRECT SELECT (A80).
  19. Disconnect electrical connection (24) on electric transmission oil pump (M42).
  20. Detach ground line (23) from transmission (26). TRANSMISSION 722.9 TORQUE SPECIFICATION
  21. Detach shield (25) from transmission (26) and disconnect electrical connection on electric controller unit. TRANSMISSION 722.9 TORQUE SPECIFICATION
  22. Unclip electrical line (22) on transmission (26) and set aside.

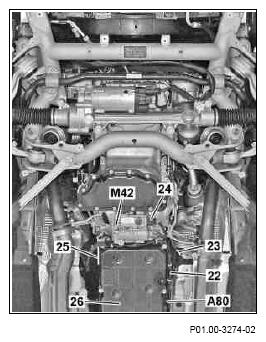

    Fig 3: Transmission Electrical And Ground Line
    G10240474Courtesy of MERCEDES-BENZ USA

    Only perform operation steps 23 to 30 for removal of cylinder head covers or rails.

  23. Remove center section of the bulkhead (78).
  24. Disconnect electrical connections on LH intake camshaft solenoid (Y49/4) and on LH exhaust camshaft solenoid (Y49/6) or RH intake camshaft solenoid (Y49/5) and on RH exhaust camshaft solenoid (Y49/7).
  25. Disconnect electrical connections on LH intake camshaft Hall sensor (B6/4) and on LH exhaust camshaft Hall sensor (B6/6) or RH intake camshaft Hall sensor (B6/5) and on LH exhaust camshaft Hall sensor (B6/7).
  26. Disconnect electrical connections at the ignition coils (T1).

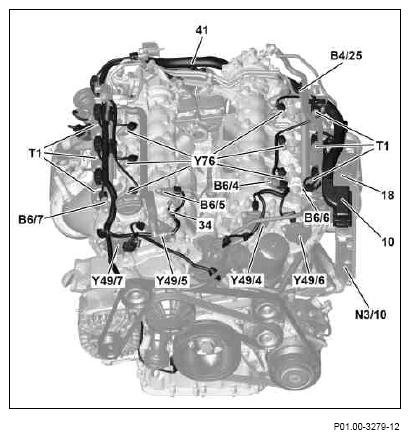

    Fig 4: LH Intake Camshaft Solenoid And RH Exhaust Camshaft Solenoid Electrical Connections
    G10240475Courtesy of MERCEDES-BENZ USA
  27. Disconnect electrical connections to fuel injectors (Y76).
    • (28.1)  Disconnect connector on fuel pressure and temperature sensor (B4/25).

      During removal of the left cylinder head cover or left rail. When removing the right cylinder head cover or right rail.

    • (28.2)  Detach ground line (34) from cylinder head cover.
  29. Detach engine wiring harness (41) on the rail.

    INSTALLATION IMPORTANT Ensure correct seating of the holding clip (33) on the rail.

  30. Lay engine wiring harness (41) aside.

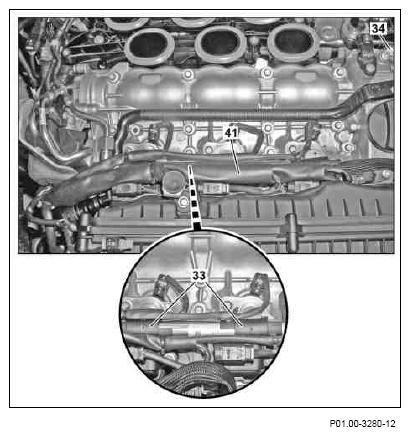

    Fig 5: Holding Clip, Engine Wiring Harness & Ground Line
    G10240476Courtesy of MERCEDES-BENZ USA
