Crank engine with starter - AR01.10-P-0110CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156, 271, 272, 642, 646, 651 in MODEL 204

ENGINE 156, 271, 274, 651 in MODEL 212

ENGINE 271, 272, 273, 642, 651 in MODEL 207

ENGINE 271, 651 in MODEL 172

ENGINE 274 in MODEL 218

ENGINE 651 in MODEL 166

ENGINE 651 in MODEL 218

Shown on ENGINE 651 in MODEL 212

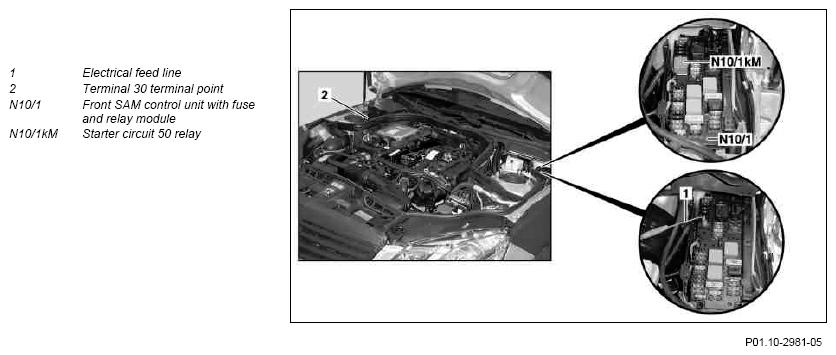

Fig 1: Engine With Starter Components - Shown On Engine 651
G09973652Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Move transmission into neutral position, switch off ignition and remove transmitter key IMPORTANT ENGINE 156, 271, 272, 642, 646, 651 in MODEL 204
with CODE 889 (KEYLESS-GO)
ENGINE 156, 271, 274, 651 in MODEL 212
with CODE 889 (KEYLESS-GO)
ENGINE 271, 272, 273, 642, 651 in MODEL 207
with CODE 889 (KEYLESS-GO)
ENGINE 271, 651 in MODEL 172
with CODE 889 (KEYLESS-GO)
ENGINE 274 in MODEL 218
with CODE 889 (KEYLESS-GO)
ENGINE 651 in MODEL 166
with CODE 889 (KEYLESS-GO)
ENGINE 651 in MODEL 218
with CODE 889 (KEYLESS-GO)
Keep pressing the start-stop button till the ignition is switched off.
2 Remove cover from front SAM control unit with fuse and relay module (N10/1)
3 Remove circuit 50 relay, starter (N10/1kM)
4 Plug electrical feed line (1) of compression recorder into slot 87 NOTES
Do not plug electrical feed line (1) into slot 87a.
A short circuit will occur otherwise.
IMPORTANT The slot allocations are also on the starter circuit 50 relay (N10/1kM).
SPECIAL TOOL Compression tester Figure
SPECIAL TOOL Electrical connection kit Fig 3
5 Attach electrical feed line of compression recorder to circuit 30 terminal point (2) in engine compartment SPECIAL TOOL Compression tester Figure
SPECIAL TOOL Electrical connection kit Fig 3
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
6 Crank engine by pressing contact switch at compression recorder SPECIAL TOOL Compression tester Figure
SPECIAL TOOL Electrical connection kit Fig 3
7 Install in the reverse order
Fig 2: Identifying Compression Tester (001 589 76 21 00)
G09973653Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Electrical Connection Kit (220 589 05 99 00)
G09973654Courtesy of MERCEDES-BENZ USA
