Connect compression recorder - AR01.10-P-0010-01SX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 157, 272, 273, 275, 276, 278, 629, 642 (except, 272.974) in MODEL 221

ENGINE 157, 273, 275, 278 in MODEL 216

ENGINE 642 in MODEL 212

ENGINE 642, 651 in MODEL 218

Fig 1: Identifying Compression Tester (001 589 76 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Electrical Connection Kit (220 589 00 99 00)

Courtesy of MERCEDES-BENZ USA

Remove cover (1) of left fuse and relay box in the engine compartment.
For vehicles with engine 275, the ME-SFI [ME] control unit is located in the cover (1).

Check seal in cover (1); replace seal if necessary.
Unlock plug (2) on driver-side SAM control unit with fuse and relay module (N10/1) and detach.
Shown on model 221.171 with code (487) Active Body Control (ABC)

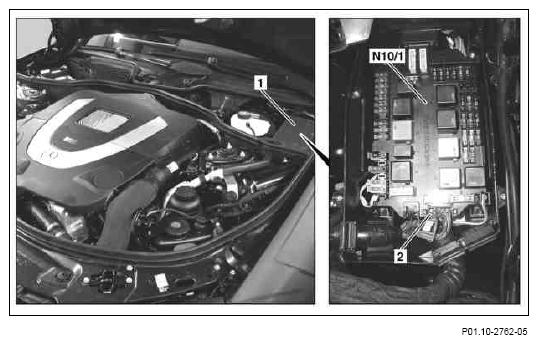

Fig 3: Cover & Plug - Shown On Model 221.171
Courtesy of MERCEDES-BENZ USA
Connect up compression recorder (01) on starter battery circuit 30 and with adapter line (11) from electrical connection kit on plug position "7" of connector (2).
The plug positions on the connector (2) are numbered.

Shown on model 221.171 with code (487) Active Body Control (ABC)

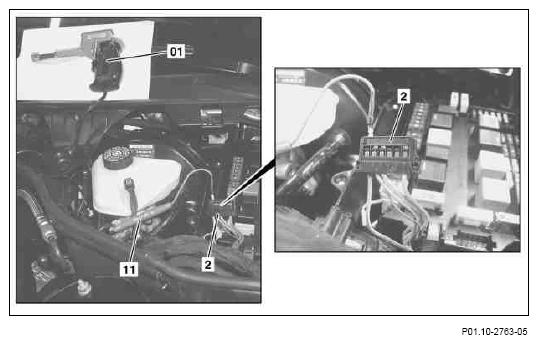

Fig 4: Compression Recorder, Connector & Adapter Line - Shown On Model 221.171
Courtesy of MERCEDES-BENZ USA
