Remove/install SPS solenoid valve - AR46.50-P-6000EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 with hydraulic power steering

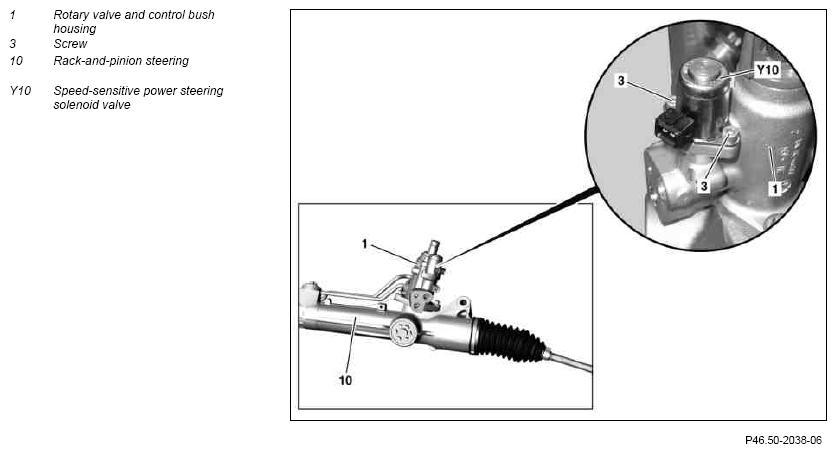

Fig 1: SPS Solenoid Valve Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Ensure the utmost cleanliness. No dirt must be allowed to enter the rotary valve and control bush housing (1) as this would result in damage to the steering gear
1	Remove rack-and-pinion steering (10)		AR46.20-P-0600EW
2	Remove bolts (3) from rotary valve and control bush housing (1) and remove speed-sensitive power steering solenoid valve (Y10)	Replace the bolts and sealing ring of the speed-sensitive power steering solenoid valve (Y10). Ensure that the sealing ring is correctly seated.
3	Install in the reverse order
4	Check operation of speed-sensitive power steering using STAR DIAGNOSIS; read out fault memory and delete if necessary		AD00.00-P-2000-04A
